SDO HMI 2011-06-11 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.61 | 0.00 | 9.68 | 8.51 | 336.99 | 49.47 | 280.72 | 0.7674 | -573.0 | -475.1 | |
|
previous
or next observation for the same group /

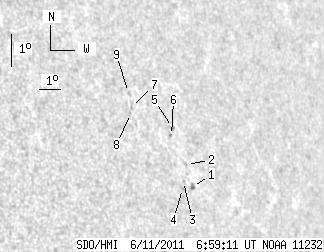

back to the solar disc SDO HMI 2011-06-11 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 2.26 | 7.43 | 337.83 | 50.31 | 279.18 | 0.7753 | -610.0 | -427.2 | |
| 0.00 | 1.45 | 0.00 | 1.13 | 8.10 | 337.65 | 50.14 | 280.08 | 0.7741 | -441.0 | -396.6 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 7.58 | 337.42 | 49.91 | 279.44 | 0.7710 | -390.0 | -440.4 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 7.37 | 337.34 | 49.82 | 279.17 | 0.7698 | -652.0 | -523.6 | |
| 0.00 | 1.81 | 0.00 | 1.40 | 9.25 | 337.19 | 49.67 | 281.62 | 0.7704 | -590.0 | -510.1 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 9.00 | 337.09 | 49.58 | 281.32 | 0.7691 | -663.0 | -537.8 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 9.88 | 335.38 | 47.86 | 282.75 | 0.7513 | -585.0 | -496.9 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 9.69 | 335.30 | 47.78 | 282.52 | 0.7501 | -663.0 | -565.4 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 10.34 | 335.33 | 47.82 | 283.38 | 0.7516 | -563.0 | -468.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
