SDO HMI 2011-06-11 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 15.96 | 1.76 | 9.87 | 14.03 | 250.73 | -34.60 | 66.83 | 0.6012 | -198.7 | -205.4 | |
|
previous
or next observation for the same group /

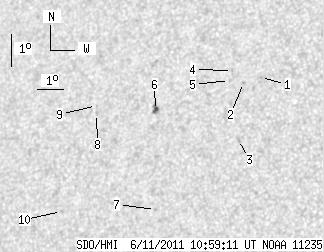

back to the solar disc SDO HMI 2011-06-11 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.54 | 15.40 | 253.76 | -31.56 | 62.95 | 0.5688 | -756.0 | -619.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 15.24 | 253.15 | -32.17 | 63.60 | 0.5757 | -724.0 | -500.6 | |
| 0.00 | 2.26 | 0.00 | 1.36 | 13.45 | 253.26 | -32.07 | 66.48 | 0.5653 | -632.0 | -540.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 15.62 | 252.67 | -32.65 | 63.29 | 0.5838 | -560.0 | -495.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 15.30 | 252.62 | -32.70 | 63.83 | 0.5829 | -650.0 | -463.2 | |
| 2.81 | 5.07 | 1.76 | 3.17 | 14.35 | 249.97 | -35.35 | 66.81 | 0.6120 | -768.1 | -633.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 11.26 | 250.47 | -34.86 | 71.50 | 0.5932 | 629.0 | 469.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 14.24 | 247.68 | -37.64 | 68.05 | 0.6405 | 748.0 | 615.4 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 14.49 | 247.63 | -37.69 | 67.69 | 0.6421 | 586.0 | 409.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 11.18 | 246.83 | -38.49 | 73.01 | 0.6407 | 573.0 | 462.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
