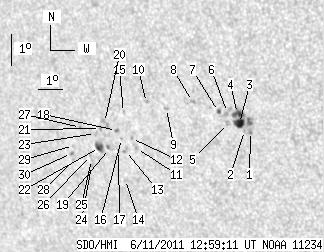

SDO HMI 2011-06-11 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.38 | 74.49 | 11.94 | 49.27 | -15.85 | 245.61 | -38.62 | 115.09 | 0.6643 | -54.3 | -54.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-11 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.61 | -15.85 | 248.97 | -35.25 | 116.83 | 0.6244 | 785.0 | 600.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.82 | 248.74 | -35.48 | 116.65 | 0.6271 | 455.0 | 421.4 | |
| 6.88 | 21.65 | 4.37 | 13.72 | -15.60 | 248.59 | -35.63 | 116.24 | 0.6278 | 780.7 | 759.0 | |
| 5.43 | -3.00 | 3.45 | -3.00 | -15.29 | 248.58 | -35.65 | 115.76 | 0.6264 | 853.0 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.62 | -15.61 | 248.16 | -36.06 | 116.00 | 0.6331 | 445.0 | 372.4 | |
| 0.00 | 4.80 | 0.00 | 3.06 | -15.26 | 248.19 | -36.03 | 115.50 | 0.6310 | 614.0 | 481.8 | |
| 1.54 | 2.17 | 0.99 | 1.39 | -15.23 | 247.85 | -36.38 | 115.27 | 0.6351 | 590.9 | 426.9 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -14.92 | 246.88 | -37.34 | 114.32 | 0.6455 | 728.0 | 574.1 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -15.15 | 245.79 | -38.43 | 114.12 | 0.6596 | -843.0 | -669.6 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -14.96 | 245.02 | -39.20 | 113.49 | 0.6681 | 678.0 | 518.8 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -16.43 | 244.27 | -39.96 | 115.20 | 0.6831 | -529.0 | -422.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -16.11 | 244.14 | -40.08 | 114.70 | 0.6832 | -768.0 | -574.4 | |
| 0.00 | 2.81 | 0.00 | 1.91 | -16.49 | 243.79 | -40.43 | 115.08 | 0.6888 | -631.0 | -559.4 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -17.42 | 243.55 | -40.67 | 116.23 | 0.6955 | 146.0 | 229.7 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -15.29 | 244.00 | -40.22 | 113.49 | 0.6815 | 488.0 | 377.8 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -16.11 | 243.72 | -40.50 | 114.52 | 0.6881 | -698.0 | -600.2 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -16.50 | 243.50 | -40.72 | 114.95 | 0.6922 | -595.0 | -516.9 | |
| 0.00 | 1.81 | 0.00 | 1.23 | -15.86 | 243.57 | -40.65 | 114.10 | 0.6888 | -882.0 | -763.7 | |
| 0.00 | 1.99 | 0.00 | 1.37 | -16.43 | 243.13 | -41.09 | 114.70 | 0.6961 | -662.0 | -641.1 | |
| 0.00 | 4.17 | 0.00 | 2.85 | -15.61 | 243.13 | -41.09 | 113.56 | 0.6929 | -851.0 | -671.7 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -15.80 | 242.92 | -41.31 | 113.74 | 0.6961 | -619.0 | -582.3 | |
| 4.53 | 6.97 | 3.13 | 4.83 | -16.41 | 242.72 | -41.50 | 114.48 | 0.7008 | -635.5 | -590.1 | |
| 0.00 | 1.81 | 0.00 | 1.25 | -15.96 | 242.66 | -41.56 | 113.85 | 0.6997 | -485.0 | -377.4 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -16.98 | 242.22 | -42.00 | 115.04 | 0.7087 | -590.0 | -406.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -16.79 | 242.27 | -41.95 | 114.81 | 0.7073 | -456.0 | -491.1 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -16.66 | 242.26 | -41.96 | 114.63 | 0.7069 | -311.0 | -318.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -15.78 | 242.07 | -42.15 | 113.35 | 0.7057 | -642.0 | -588.7 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -16.83 | 241.49 | -42.74 | 114.52 | 0.7163 | -605.0 | -505.8 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -16.35 | 241.62 | -42.60 | 113.94 | 0.7130 | -438.0 | -435.7 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -16.61 | 241.46 | -42.76 | 114.21 | 0.7157 | -743.0 | -578.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
