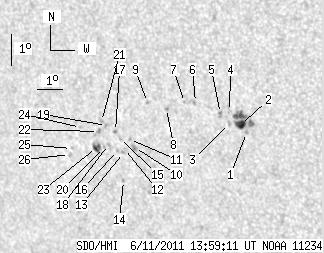

SDO HMI 2011-06-11 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.14 | 64.16 | 7.27 | 42.01 | -15.86 | 245.77 | -37.90 | 115.47 | 0.6559 | -189.2 | 42.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-11 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.91 | -15.85 | 248.81 | -34.86 | 117.05 | 0.6196 | 581.0 | 505.6 | |
| 6.79 | 23.28 | 4.28 | 14.65 | -15.59 | 248.63 | -35.04 | 116.56 | 0.6206 | 798.4 | 799.3 | |
| 0.00 | 1.99 | 0.00 | 1.26 | -15.56 | 248.21 | -35.46 | 116.28 | 0.6256 | 480.0 | 382.0 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -15.18 | 248.28 | -35.39 | 115.75 | 0.6228 | 534.0 | 468.5 | |
| 0.00 | 2.45 | 0.00 | 1.55 | -15.25 | 247.92 | -35.75 | 115.65 | 0.6276 | 692.0 | 560.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -14.91 | 247.01 | -36.66 | 114.65 | 0.6371 | 277.0 | 273.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -14.91 | 246.57 | -37.10 | 114.43 | 0.6425 | 370.0 | 357.5 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -15.11 | 245.82 | -37.86 | 114.34 | 0.6525 | -720.0 | -650.2 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -14.92 | 245.09 | -38.58 | 113.72 | 0.6605 | 732.0 | 511.8 | |
| 0.00 | 3.17 | 0.00 | 2.13 | -16.35 | 244.23 | -39.44 | 115.35 | 0.6768 | -728.0 | -549.8 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -16.10 | 244.09 | -39.58 | 114.93 | 0.6774 | -762.0 | -652.0 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -16.39 | 243.81 | -39.86 | 115.20 | 0.6818 | -666.0 | -492.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -16.52 | 243.74 | -39.93 | 115.34 | 0.6832 | -657.0 | -575.7 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -17.41 | 243.51 | -40.16 | 116.46 | 0.6897 | 330.0 | 288.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -16.07 | 243.68 | -39.99 | 114.70 | 0.6820 | -714.0 | -663.6 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -16.45 | 243.50 | -40.17 | 115.15 | 0.6856 | -505.0 | -436.5 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -15.85 | 243.57 | -40.10 | 114.34 | 0.6824 | -845.0 | -778.8 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -16.27 | 243.18 | -40.50 | 114.73 | 0.6887 | -699.0 | -559.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -15.66 | 243.24 | -40.43 | 113.93 | 0.6854 | -805.0 | -742.5 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -16.36 | 242.98 | -40.69 | 114.78 | 0.6913 | -748.0 | -617.5 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -15.54 | 243.06 | -40.61 | 113.67 | 0.6870 | -782.0 | -634.8 | |
| 0.00 | 2.17 | 0.00 | 1.48 | -15.86 | 242.86 | -40.81 | 114.03 | 0.6906 | -675.0 | -581.0 | |
| 4.35 | 7.88 | 2.99 | 5.41 | -16.37 | 242.65 | -41.02 | 114.63 | 0.6951 | -641.1 | -505.4 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -15.73 | 242.13 | -41.54 | 113.55 | 0.6986 | -666.0 | -559.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -16.41 | 241.57 | -42.10 | 114.22 | 0.7075 | -653.0 | -470.2 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -16.60 | 241.43 | -42.24 | 114.42 | 0.7098 | -788.0 | -579.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
