SDO HMI 2011-06-11 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.76 | 65.58 | 8.76 | 42.51 | -15.74 | 245.43 | -37.13 | 115.71 | 0.6461 | 12.5 | -15.0 | |
|
previous
or next observation for the same group /

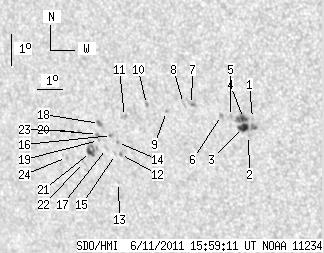

back to the solar disc SDO HMI 2011-06-11 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.45 | -15.30 | 249.15 | -33.41 | 117.09 | 0.5988 | 723.0 | 690.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -15.84 | 248.90 | -33.67 | 117.76 | 0.6049 | 493.0 | 431.3 | |
| 5.98 | 19.38 | 3.71 | 12.02 | -15.58 | 248.76 | -33.81 | 117.29 | 0.6053 | 812.5 | 793.8 | |
| 3.89 | -3.00 | 2.41 | -3.00 | -15.30 | 248.81 | -33.76 | 116.88 | 0.6031 | 943.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -15.24 | 248.32 | -34.24 | 116.50 | 0.6088 | 700.0 | 536.5 | |
| 0.00 | 2.35 | 0.00 | 1.47 | -15.21 | 247.99 | -34.58 | 116.25 | 0.6129 | 767.0 | 532.7 | |
| 0.00 | 2.72 | 0.00 | 1.72 | -14.87 | 246.89 | -35.67 | 115.12 | 0.6247 | 635.0 | 537.1 | |
| 0.00 | 2.35 | 0.00 | 1.50 | -14.84 | 246.59 | -35.98 | 114.91 | 0.6284 | 383.0 | 325.2 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -15.10 | 245.87 | -36.70 | 114.91 | 0.6384 | -844.0 | -651.2 | |
| 0.00 | 2.08 | 0.00 | 1.35 | -14.88 | 245.12 | -37.44 | 114.22 | 0.6466 | 707.0 | 416.3 | |
| 0.00 | 3.17 | 0.00 | 2.09 | -15.26 | 244.16 | -38.41 | 114.31 | 0.6599 | 805.0 | 539.1 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -16.47 | 243.72 | -38.85 | 115.81 | 0.6704 | -747.0 | -676.5 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -17.37 | 243.41 | -39.15 | 116.91 | 0.6780 | 358.0 | 272.5 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -16.09 | 243.69 | -38.88 | 115.26 | 0.6691 | -823.0 | -707.7 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -16.48 | 243.51 | -39.05 | 115.71 | 0.6728 | -524.0 | -432.1 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -15.87 | 243.49 | -39.07 | 114.85 | 0.6704 | -897.0 | -794.5 | |
| 0.00 | 1.99 | 0.00 | 1.34 | -16.29 | 243.19 | -39.37 | 115.29 | 0.6758 | -755.0 | -513.0 | |
| 0.00 | 3.53 | 0.00 | 2.36 | -15.49 | 243.09 | -39.48 | 114.13 | 0.6736 | -929.0 | -747.5 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -16.03 | 242.92 | -39.64 | 114.81 | 0.6778 | -758.0 | -647.6 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -15.84 | 242.93 | -39.64 | 114.54 | 0.6770 | -774.0 | -645.5 | |
| 3.89 | 11.05 | 2.64 | 7.47 | -16.42 | 242.50 | -40.07 | 115.15 | 0.6844 | -629.5 | -581.4 | |
| 0.00 | 1.90 | 0.00 | 1.30 | -16.74 | 242.12 | -40.44 | 115.41 | 0.6900 | -333.0 | -327.7 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -15.75 | 242.16 | -40.41 | 114.07 | 0.6855 | -714.0 | -561.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -16.59 | 241.45 | -41.12 | 114.90 | 0.6971 | -729.0 | -496.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
