SDO HMI 2011-06-11 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.28 | 62.70 | 10.95 | 40.34 | -15.72 | 245.42 | -36.59 | 115.98 | 0.6395 | -43.2 | -98.8 | |
|
previous
or next observation for the same group /

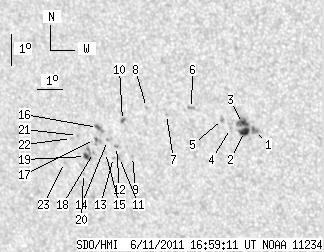

back to the solar disc SDO HMI 2011-06-11 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.62 | 0.00 | 2.22 | -15.54 | 249.20 | -32.82 | 117.85 | 0.5927 | 902.0 | 850.3 | |
| 5.70 | 17.21 | 3.52 | 10.60 | -15.58 | 248.81 | -33.20 | 117.66 | 0.5977 | 837.2 | 725.9 | |
| 5.61 | -2.00 | 3.46 | -2.00 | -15.32 | 248.78 | -33.23 | 117.25 | 0.5967 | 892.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -15.49 | 248.30 | -33.71 | 117.20 | 0.6036 | 577.0 | 381.3 | |
| 0.00 | 2.72 | 0.00 | 1.69 | -15.20 | 248.05 | -33.97 | 116.61 | 0.6052 | 762.0 | 540.7 | |
| 0.00 | 2.90 | 0.00 | 1.82 | -14.86 | 246.92 | -35.09 | 115.43 | 0.6175 | 575.0 | 511.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -15.06 | 245.91 | -36.10 | 115.18 | 0.6309 | -730.0 | -653.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -14.84 | 245.17 | -36.84 | 114.47 | 0.6390 | 516.0 | 437.1 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -16.40 | 244.28 | -37.73 | 116.27 | 0.6570 | -685.0 | -535.2 | |
| 1.36 | 2.99 | 0.89 | 1.95 | -15.26 | 244.13 | -37.88 | 114.56 | 0.6536 | 653.9 | 552.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -16.44 | 243.74 | -38.27 | 116.05 | 0.6634 | -745.0 | -639.9 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -16.09 | 243.70 | -38.31 | 115.53 | 0.6623 | -864.0 | -682.2 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -16.44 | 243.50 | -38.51 | 115.93 | 0.6663 | -591.0 | -475.6 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -15.90 | 243.38 | -38.63 | 115.11 | 0.6653 | -885.0 | -777.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -16.28 | 243.21 | -38.80 | 115.56 | 0.6690 | -643.0 | -461.5 | |
| 2.08 | 4.62 | 1.38 | 3.06 | -15.49 | 243.07 | -38.94 | 114.37 | 0.6672 | -726.9 | -637.0 | |
| 0.36 | 4.80 | 0.24 | 3.20 | -15.87 | 242.86 | -39.15 | 114.81 | 0.6714 | -637.8 | -627.0 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -16.28 | 242.72 | -39.29 | 115.33 | 0.6748 | -774.0 | -560.9 | |
| 2.17 | 7.52 | 1.46 | 5.05 | -16.41 | 242.36 | -39.65 | 115.34 | 0.6796 | -677.5 | -634.1 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -16.96 | 242.14 | -39.87 | 115.98 | 0.6844 | -538.0 | -476.3 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -15.75 | 242.19 | -39.82 | 114.33 | 0.6787 | -749.0 | -610.0 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -15.85 | 241.92 | -40.09 | 114.34 | 0.6823 | -508.0 | -436.8 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -16.61 | 241.43 | -40.58 | 115.18 | 0.6911 | -705.0 | -623.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
