SDO HMI 2011-06-11 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.38 | 64.02 | 10.24 | 40.87 | -15.68 | 245.51 | -35.94 | 116.27 | 0.6314 | -26.4 | -126.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-11 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

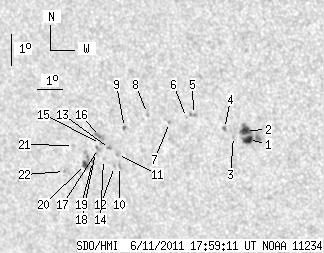

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 22.73 | 3.38 | 13.90 | -15.57 | 248.90 | -32.55 | 118.07 | 0.5896 | 853.1 | 765.6 | |
| 6.88 | -1.00 | 4.21 | -1.00 | -15.29 | 248.84 | -32.62 | 117.58 | 0.5888 | 916.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -15.48 | 248.35 | -33.10 | 117.57 | 0.5960 | 557.0 | 416.5 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -15.23 | 248.06 | -33.40 | 117.00 | 0.5983 | 732.0 | 560.0 | |
| 0.00 | 3.35 | 0.00 | 2.09 | -14.79 | 246.96 | -34.50 | 115.67 | 0.6098 | 613.0 | 493.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -14.89 | 246.67 | -34.79 | 115.65 | 0.6138 | 486.0 | 372.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -15.05 | 245.98 | -35.47 | 115.51 | 0.6232 | -693.0 | -571.6 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -14.77 | 245.18 | -36.28 | 114.66 | 0.6318 | 244.0 | 272.3 | |
| 0.45 | 1.27 | 0.29 | 0.82 | -15.22 | 244.18 | -37.27 | 114.81 | 0.6460 | 722.6 | 643.1 | |
| 0.00 | 2.08 | 0.00 | 1.37 | -16.46 | 243.71 | -37.74 | 116.36 | 0.6574 | -739.0 | -616.2 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -16.08 | 243.72 | -37.74 | 115.81 | 0.6556 | -846.0 | -711.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -16.46 | 243.51 | -37.95 | 116.25 | 0.6598 | -603.0 | -442.8 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -15.89 | 243.44 | -38.02 | 115.40 | 0.6580 | -857.0 | -800.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -16.24 | 243.11 | -38.34 | 115.74 | 0.6635 | -612.0 | -523.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -15.73 | 243.11 | -38.35 | 115.01 | 0.6612 | -735.0 | -695.5 | |
| 0.00 | 5.61 | 0.00 | 3.69 | -15.51 | 243.12 | -38.34 | 114.70 | 0.6602 | -943.0 | -660.3 | |
| 0.00 | 2.81 | 0.00 | 1.85 | -15.89 | 242.99 | -38.46 | 115.18 | 0.6633 | -794.0 | -685.1 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -16.02 | 242.84 | -38.61 | 115.29 | 0.6657 | -663.0 | -676.6 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -16.31 | 242.65 | -38.80 | 115.60 | 0.6692 | -626.0 | -592.0 | |
| 3.53 | 9.15 | 2.36 | 6.10 | -16.41 | 242.34 | -39.11 | 115.59 | 0.6733 | -679.5 | -618.8 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -15.81 | 241.99 | -39.46 | 114.58 | 0.6748 | -572.0 | -465.0 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -16.64 | 241.42 | -40.04 | 115.47 | 0.6850 | -790.0 | -612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
