SDO HMI 2011-06-11 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.29 | 54.64 | 11.70 | 33.71 | -15.80 | 245.65 | -33.03 | 118.28 | 0.5964 | 45.5 | -63.7 | |
|
previous
or next observation for the same group /

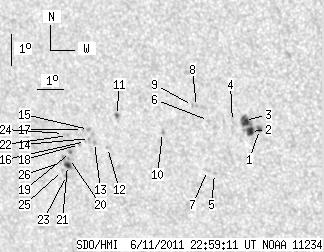

back to the solar disc SDO HMI 2011-06-11 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 21.28 | 1.34 | 12.61 | -15.47 | 249.54 | -29.14 | 120.40 | 0.5463 | 933.1 | 769.6 | |
| 4.71 | -1.00 | 2.79 | -1.00 | -15.53 | 249.20 | -29.48 | 120.24 | 0.5510 | 945.8 | 999999 | |
| 6.61 | -1.00 | 3.92 | -1.00 | -15.18 | 249.04 | -29.64 | 119.54 | 0.5508 | 872.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -15.22 | 248.59 | -30.09 | 119.27 | 0.5566 | 713.0 | 718.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -16.88 | 247.65 | -31.03 | 121.20 | 0.5789 | 725.0 | 540.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -15.19 | 247.72 | -30.96 | 118.59 | 0.5676 | 424.0 | 406.4 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -16.78 | 247.40 | -31.28 | 120.87 | 0.5813 | 600.0 | 551.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.75 | 247.35 | -31.33 | 117.62 | 0.5697 | 776.0 | 672.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -14.72 | 247.20 | -31.48 | 117.47 | 0.5714 | 640.0 | 507.5 | |
| 0.00 | 1.90 | 0.00 | 1.17 | -15.58 | 245.94 | -32.74 | 118.00 | 0.5922 | 777.0 | 671.7 | |
| 1.54 | 1.72 | 0.96 | 1.07 | -15.05 | 244.29 | -34.39 | 116.16 | 0.6100 | 669.4 | 725.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -16.07 | 243.74 | -34.94 | 117.38 | 0.6219 | -768.0 | -628.8 | |
| 0.00 | 1.99 | 0.00 | 1.26 | -15.92 | 243.27 | -35.41 | 116.87 | 0.6269 | -947.0 | -750.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -15.79 | 243.10 | -35.58 | 116.59 | 0.6283 | -709.0 | -636.8 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -15.51 | 243.12 | -35.56 | 116.17 | 0.6267 | -930.0 | -718.5 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -15.89 | 242.93 | -35.75 | 116.63 | 0.6309 | -563.0 | -505.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.51 | 242.89 | -35.79 | 116.04 | 0.6295 | -710.0 | -576.0 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -15.98 | 242.67 | -36.01 | 116.63 | 0.6345 | -449.0 | -392.7 | |
| 1.00 | 1.45 | 0.64 | 0.93 | -16.24 | 242.26 | -36.42 | 116.78 | 0.6407 | -784.7 | -708.4 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -16.43 | 242.18 | -36.50 | 117.01 | 0.6426 | -672.0 | -607.2 | |
| 3.17 | 6.61 | 2.05 | 4.28 | -16.66 | 242.05 | -36.63 | 117.26 | 0.6453 | -870.3 | -659.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -15.70 | 242.26 | -36.42 | 115.99 | 0.6381 | -796.0 | -579.2 | |
| 0.00 | 1.99 | 0.00 | 1.29 | -16.98 | 241.94 | -36.74 | 117.66 | 0.6482 | -708.0 | -585.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -15.64 | 242.11 | -36.57 | 115.82 | 0.6396 | -509.0 | -467.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -16.82 | 241.82 | -36.86 | 117.37 | 0.6489 | -677.0 | -496.2 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -16.56 | 241.79 | -36.89 | 116.99 | 0.6479 | -441.0 | -387.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
