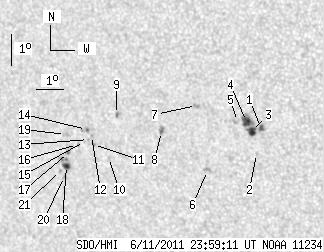

SDO HMI 2011-06-11 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.83 | 61.89 | 13.16 | 37.80 | -15.77 | 245.99 | -32.13 | 118.85 | 0.5852 | 42.2 | 34.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-11 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 3.35 | 1.49 | 1.97 | -15.42 | 249.60 | -28.53 | 120.83 | 0.5382 | 983.2 | 827.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -16.22 | 249.29 | -28.83 | 121.89 | 0.5475 | 198.0 | 132.5 | |
| 5.89 | 19.29 | 3.47 | 11.37 | -15.52 | 249.22 | -28.90 | 120.69 | 0.5436 | 907.9 | 765.4 | |
| 6.52 | -3.00 | 3.84 | -3.00 | -15.20 | 249.09 | -29.04 | 120.06 | 0.5432 | 879.3 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.66 | -15.21 | 248.76 | -29.36 | 119.81 | 0.5474 | 207.0 | 365.9 | |
| 0.00 | 3.35 | 0.00 | 2.02 | -16.77 | 247.40 | -30.72 | 121.28 | 0.5745 | 676.0 | 559.7 | |
| 0.00 | 2.81 | 0.00 | 1.68 | -14.71 | 247.35 | -30.78 | 117.95 | 0.5624 | 634.0 | 593.4 | |
| 1.36 | 3.26 | 0.83 | 1.99 | -15.54 | 245.91 | -32.21 | 118.29 | 0.5854 | 603.0 | 595.2 | |
| 0.36 | 2.63 | 0.22 | 1.63 | -15.01 | 244.31 | -33.82 | 116.45 | 0.6026 | 691.5 | 535.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -16.38 | 243.74 | -34.38 | 118.18 | 0.6169 | -582.0 | -465.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -15.97 | 243.24 | -34.88 | 117.27 | 0.6208 | -885.0 | -725.8 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.68 | 243.22 | -34.90 | 116.83 | 0.6195 | -797.0 | -671.9 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -15.81 | 243.08 | -35.04 | 116.94 | 0.6219 | -686.0 | -632.6 | |
| 0.36 | 1.45 | 0.23 | 0.91 | -15.50 | 243.07 | -35.06 | 116.45 | 0.6205 | -866.2 | -723.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.88 | 242.91 | -35.21 | 116.94 | 0.6243 | -570.0 | -495.2 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -15.97 | 242.62 | -35.50 | 116.91 | 0.6284 | -644.0 | -463.4 | |
| 1.45 | 1.54 | 0.93 | 0.98 | -16.23 | 242.22 | -35.91 | 117.06 | 0.6346 | -796.8 | -601.0 | |
| 3.35 | 8.70 | 2.15 | 5.59 | -16.65 | 242.05 | -36.08 | 117.57 | 0.6387 | -864.6 | -693.4 | |
| 0.00 | 2.54 | 0.00 | 1.62 | -15.66 | 242.22 | -35.91 | 116.22 | 0.6317 | -790.0 | -558.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -17.00 | 241.89 | -36.23 | 117.99 | 0.6424 | -717.0 | -603.9 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -16.81 | 241.78 | -36.35 | 117.65 | 0.6428 | -525.0 | -450.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
