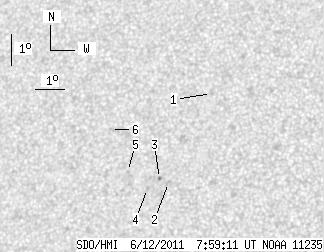

SDO HMI 2011-06-12 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.99 | 0.00 | 3.84 | 15.72 | 252.92 | -20.81 | 52.70 | 0.4320 | -655.2 | -557.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | 17.93 | 254.50 | -19.23 | 46.48 | 0.4339 | -824.0 | -493.0 | |
| 0.00 | 2.08 | 0.00 | 1.14 | 15.11 | 253.35 | -20.38 | 53.34 | 0.4208 | -643.0 | -535.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.23 | 253.04 | -20.69 | 53.49 | 0.4259 | -976.0 | -796.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 14.92 | 252.67 | -21.06 | 54.57 | 0.4280 | -730.0 | -617.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 15.45 | 251.93 | -21.80 | 54.42 | 0.4419 | -599.0 | -504.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 16.78 | 251.19 | -22.54 | 52.81 | 0.4625 | -159.0 | -255.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
