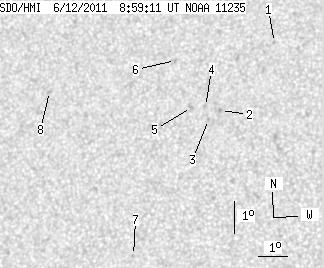

SDO HMI 2011-06-12 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.33 | 0.00 | 6.22 | 15.16 | 251.74 | -21.45 | 54.50 | 0.4359 | -401.0 | -331.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.36 | 254.66 | -18.52 | 46.48 | 0.4199 | -659.0 | -523.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.21 | 253.07 | -20.12 | 52.81 | 0.4184 | -954.0 | -753.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 14.92 | 252.69 | -20.49 | 53.86 | 0.4206 | -663.0 | -559.7 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 15.33 | 252.55 | -20.64 | 53.24 | 0.4260 | -646.0 | -512.3 | |
| 0.00 | 2.54 | 0.00 | 1.39 | 15.30 | 252.08 | -21.11 | 53.89 | 0.4317 | -854.0 | -643.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 16.78 | 251.36 | -21.82 | 51.96 | 0.4537 | -790.0 | -509.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.68 | 250.55 | -22.63 | 65.20 | 0.4183 | 717.0 | 614.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 15.78 | 247.12 | -26.07 | 58.22 | 0.4994 | 641.0 | 480.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
