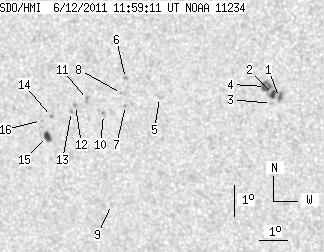

SDO HMI 2011-06-12 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.96 | 45.40 | 6.85 | 25.99 | -15.69 | 246.30 | -25.24 | 124.65 | 0.4991 | 7.0 | 173.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.17 | 0.00 | 2.31 | -15.42 | 250.15 | -21.39 | 128.17 | 0.4490 | 971.0 | 872.0 | |
| 3.17 | 14.86 | 1.76 | 8.24 | -15.32 | 249.96 | -21.58 | 127.76 | 0.4505 | 980.7 | 782.9 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -15.61 | 249.86 | -21.68 | 128.16 | 0.4543 | 549.0 | 394.6 | |
| 3.81 | -2.00 | 2.11 | -2.00 | -15.07 | 249.71 | -21.82 | 127.00 | 0.4513 | 921.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -15.44 | 246.01 | -25.52 | 123.64 | 0.5009 | 713.0 | 517.2 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -14.84 | 244.90 | -26.64 | 121.57 | 0.5107 | 762.0 | 604.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -15.70 | 244.78 | -26.76 | 122.92 | 0.5184 | -721.0 | -607.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -15.32 | 244.69 | -26.85 | 122.20 | 0.5167 | 492.0 | 479.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -18.87 | 243.76 | -27.77 | 127.09 | 0.5548 | 738.0 | 482.7 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -15.99 | 243.95 | -27.58 | 122.67 | 0.5309 | -814.0 | -647.1 | |
| 0.00 | 2.99 | 0.00 | 1.75 | -15.52 | 243.45 | -28.09 | 121.45 | 0.5338 | -599.0 | -607.9 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -15.71 | 242.99 | -28.55 | 121.39 | 0.5410 | -890.0 | -719.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -15.90 | 242.82 | -28.72 | 121.56 | 0.5445 | -686.0 | -565.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -16.06 | 242.06 | -29.47 | 121.22 | 0.5550 | -819.0 | -695.7 | |
| 4.98 | 5.62 | 2.98 | 3.36 | -16.70 | 241.81 | -29.73 | 122.03 | 0.5624 | -870.4 | -758.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -16.19 | 241.68 | -29.86 | 121.12 | 0.5606 | -634.0 | -585.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
