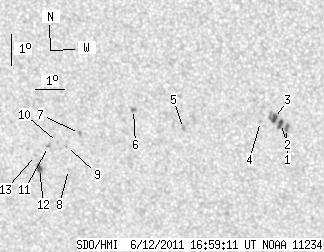

SDO HMI 2011-06-12 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.32 | 32.72 | 5.22 | 18.30 | -15.63 | 246.31 | -22.47 | 127.70 | 0.4644 | -14.4 | 189.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.99 | 0.00 | 1.62 | -15.39 | 250.36 | -18.42 | 132.21 | 0.4130 | 956.0 | 824.5 | |
| 1.99 | 3.80 | 1.08 | 2.07 | -15.24 | 250.17 | -18.60 | 131.64 | 0.4136 | 1100.5 | 879.0 | |
| 3.44 | 7.16 | 1.87 | 3.89 | -15.08 | 249.98 | -18.79 | 131.07 | 0.4143 | 939.9 | 683.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -15.18 | 249.51 | -19.27 | 130.57 | 0.4210 | 738.0 | 522.2 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -15.41 | 246.89 | -21.89 | 127.56 | 0.4552 | 778.0 | 600.4 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -14.82 | 245.24 | -23.53 | 124.61 | 0.4708 | 864.0 | 601.6 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -15.59 | 243.27 | -25.50 | 123.94 | 0.5018 | -914.0 | -750.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.74 | 242.73 | -26.05 | 125.34 | 0.5176 | -627.0 | -532.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.00 | 242.76 | -26.01 | 124.15 | 0.5114 | -739.0 | -572.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -15.88 | 242.46 | -26.31 | 123.65 | 0.5142 | -769.0 | -637.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -16.01 | 242.12 | -26.65 | 123.56 | 0.5194 | -854.0 | -748.2 | |
| 3.89 | 5.62 | 2.27 | 3.28 | -16.71 | 241.70 | -27.08 | 124.33 | 0.5300 | -850.9 | -523.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -16.30 | 241.62 | -27.16 | 123.57 | 0.5278 | -667.0 | -477.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
