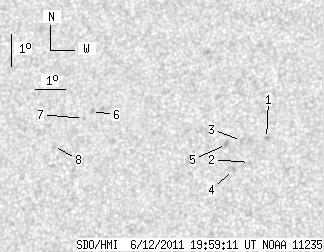

SDO HMI 2011-06-12 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.86 | 0.00 | 8.45 | 15.14 | 251.13 | -15.97 | 46.44 | 0.3667 | -210.1 | -295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.05 | 15.28 | 253.33 | -13.77 | 42.33 | 0.3426 | -966.0 | -827.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 14.53 | 252.83 | -14.28 | 44.92 | 0.3396 | -791.0 | -563.2 | |
| 0.00 | 2.63 | 0.00 | 1.39 | 15.22 | 252.52 | -14.58 | 44.06 | 0.3509 | -675.0 | -532.9 | |
| 0.00 | 2.54 | 0.00 | 1.34 | 14.30 | 252.33 | -14.78 | 46.37 | 0.3430 | -849.0 | -558.6 | |
| 0.00 | 3.26 | 0.00 | 1.73 | 15.09 | 252.04 | -15.06 | 45.22 | 0.3550 | -851.0 | -628.8 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 16.11 | 247.48 | -19.63 | 50.44 | 0.4203 | 868.0 | 692.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 15.89 | 247.24 | -19.87 | 51.20 | 0.4212 | 708.0 | 572.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 15.01 | 246.32 | -20.79 | 54.13 | 0.4249 | 875.0 | 572.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
