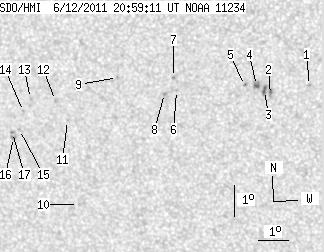

SDO HMI 2011-06-12 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.80 | 29.74 | 2.57 | 16.36 | -15.68 | 246.68 | -19.87 | 131.19 | 0.4338 | 177.3 | 140.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-12 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.08 | 251.78 | -14.77 | 137.81 | 0.3681 | 851.0 | 637.5 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -15.37 | 250.49 | -16.07 | 136.00 | 0.3858 | 926.0 | 741.8 | |
| 2.99 | 3.89 | 1.60 | 2.09 | -15.24 | 250.30 | -16.25 | 135.44 | 0.3865 | 927.1 | 755.1 | |
| 1.81 | 4.80 | 0.97 | 2.58 | -15.09 | 250.05 | -16.50 | 134.71 | 0.3876 | 900.2 | 792.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.09 | 249.65 | -16.90 | 134.05 | 0.3922 | 697.0 | 555.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.25 | 247.38 | -19.17 | 130.88 | 0.4208 | 758.0 | 605.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -14.84 | 247.32 | -19.23 | 130.01 | 0.4175 | 808.0 | 632.7 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -15.35 | 246.97 | -19.58 | 130.48 | 0.4267 | 830.0 | 656.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.85 | 245.44 | -21.11 | 127.52 | 0.4408 | 885.0 | 699.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.92 | 243.60 | -22.96 | 132.23 | 0.5002 | 656.0 | 528.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -16.23 | 243.58 | -22.97 | 127.75 | 0.4759 | -849.0 | -675.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -15.59 | 243.24 | -23.31 | 126.26 | 0.4746 | -872.0 | -766.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -15.53 | 242.39 | -24.17 | 125.23 | 0.4848 | -800.0 | -646.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -15.95 | 242.09 | -24.46 | 125.63 | 0.4919 | -717.0 | -585.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -16.52 | 241.87 | -24.68 | 126.39 | 0.4992 | -691.0 | -548.9 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -16.78 | 241.63 | -24.92 | 126.56 | 0.5043 | -818.0 | -711.4 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -16.62 | 241.61 | -24.94 | 126.28 | 0.5032 | -906.0 | -638.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
