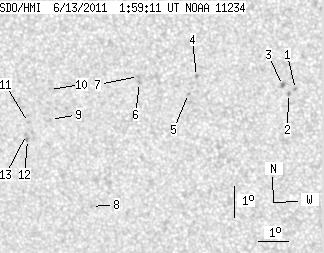

SDO HMI 2011-06-13 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.51 | 0.00 | 9.51 | -15.69 | 245.92 | -17.87 | 134.22 | 0.4110 | 267.9 | 282.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-13 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.16 | 250.67 | -13.12 | 141.31 | 0.3520 | 939.0 | 723.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.29 | 250.43 | -13.36 | 141.06 | 0.3560 | 999.0 | 823.1 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -15.04 | 250.25 | -13.53 | 140.22 | 0.3547 | 1067.0 | 880.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.76 | 247.47 | -16.32 | 134.47 | 0.3823 | 974.0 | 805.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.30 | 247.16 | -16.62 | 134.98 | 0.3918 | 764.0 | 600.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.96 | 245.57 | -18.22 | 131.79 | 0.4067 | 744.0 | 599.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -14.77 | 245.55 | -18.23 | 131.40 | 0.4050 | 902.0 | 610.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.93 | 243.53 | -20.26 | 135.72 | 0.4710 | 741.0 | 592.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -16.15 | 242.46 | -21.33 | 129.66 | 0.4556 | -569.0 | -552.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.19 | 242.53 | -21.26 | 128.03 | 0.4460 | -715.0 | -555.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -16.25 | 241.70 | -22.09 | 128.89 | 0.4657 | -760.0 | -624.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -16.79 | 241.60 | -22.19 | 129.71 | 0.4719 | -811.0 | -725.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -16.63 | 241.58 | -22.20 | 129.41 | 0.4706 | -792.0 | -538.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
