SDO HMI 2011-06-13 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.43 | 0.00 | 4.92 | 15.67 | 251.87 | -10.27 | 32.93 | 0.3139 | -549.8 | -417.3 | |
|
previous
or next observation for the same group /

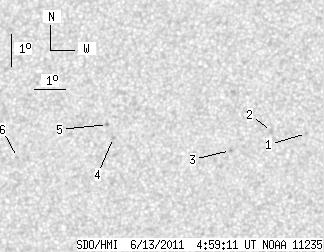

back to the solar disc SDO HMI 2011-06-13 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.84 | 255.65 | -6.48 | 22.65 | 0.2833 | -782.0 | -549.9 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 15.90 | 254.54 | -7.60 | 25.95 | 0.2919 | -616.0 | -385.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.30 | 253.25 | -8.89 | 30.67 | 0.2934 | -962.0 | -728.0 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 15.70 | 249.47 | -12.67 | 39.28 | 0.3350 | -889.0 | -640.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 16.11 | 249.24 | -12.89 | 38.96 | 0.3424 | -890.0 | -801.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 15.07 | 246.38 | -15.75 | 46.64 | 0.3621 | 840.0 | 614.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
