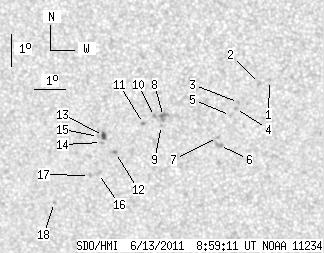

SDO HMI 2011-06-13 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 34.89 | 1.41 | 18.60 | -15.26 | 245.39 | -14.56 | 138.92 | 0.3692 | 140.3 | 235.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-13 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.42 | -13.57 | 249.09 | -10.86 | 143.52 | 0.3093 | 741.0 | 564.3 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -13.66 | 248.76 | -11.18 | 142.91 | 0.3138 | 899.0 | 641.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.26 | 248.06 | -11.88 | 142.41 | 0.3287 | 893.0 | 673.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.45 | 247.95 | -11.99 | 142.53 | 0.3322 | 802.0 | 590.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.67 | 247.78 | -12.16 | 142.56 | 0.3368 | 833.0 | 566.1 | |
| 0.00 | 3.72 | 0.00 | 1.97 | -15.62 | 247.37 | -12.58 | 143.38 | 0.3531 | 915.0 | 732.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.37 | 247.32 | -12.63 | 142.82 | 0.3503 | 773.0 | 612.4 | |
| 0.00 | 6.16 | 0.00 | 3.27 | -14.71 | 245.61 | -14.33 | 138.09 | 0.3600 | 968.0 | 900.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.00 | 245.53 | -14.42 | 138.47 | 0.3643 | 651.0 | 508.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.71 | 245.32 | -14.63 | 137.52 | 0.3632 | 837.0 | 698.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -14.94 | 244.95 | -15.00 | 137.24 | 0.3700 | 595.0 | 420.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -15.86 | 243.96 | -15.99 | 137.18 | 0.3915 | -932.0 | -717.6 | |
| 2.63 | 3.17 | 1.41 | 1.71 | -15.32 | 243.61 | -16.34 | 135.58 | 0.3893 | -1058.0 | -927.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -15.54 | 243.52 | -16.43 | 135.85 | 0.3927 | -894.0 | -709.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.35 | 243.44 | -16.51 | 135.35 | 0.3916 | -825.0 | -631.2 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -16.53 | 243.34 | -16.61 | 137.31 | 0.4059 | -751.0 | -545.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -16.60 | 243.03 | -16.91 | 136.92 | 0.4099 | -667.0 | -560.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.47 | 241.78 | -18.17 | 136.42 | 0.4332 | -764.0 | -571.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
