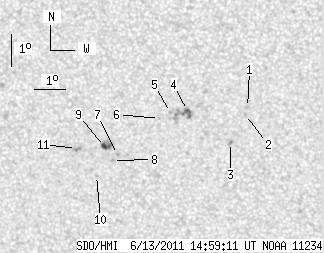

SDO HMI 2011-06-13 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.81 | 35.43 | 2.53 | 18.64 | -15.18 | 245.08 | -11.57 | 145.08 | 0.3381 | 48.6 | 118.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-13 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.46 | 248.08 | -8.57 | 151.25 | 0.3013 | 851.0 | 615.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.68 | 248.01 | -8.64 | 151.41 | 0.3051 | 878.0 | 655.6 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -15.57 | 247.49 | -9.16 | 151.43 | 0.3220 | 956.0 | 781.2 | |
| 2.27 | 13.32 | 1.18 | 6.97 | -14.56 | 246.16 | -10.49 | 146.35 | 0.3192 | 1120.6 | 830.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.62 | 245.61 | -11.03 | 145.12 | 0.3252 | 710.0 | 528.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.81 | 245.25 | -11.40 | 144.60 | 0.3312 | 568.0 | 463.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.96 | 243.83 | -12.82 | 143.47 | 0.3599 | -975.0 | -791.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.15 | 243.65 | -13.00 | 143.43 | 0.3641 | -867.0 | -675.4 | |
| 2.54 | 8.06 | 1.35 | 4.28 | -15.71 | 243.42 | -13.23 | 142.18 | 0.3607 | -1054.1 | -919.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.63 | 243.10 | -13.55 | 143.11 | 0.3756 | -678.0 | -465.9 | |
| 0.00 | 3.53 | 0.00 | 1.88 | -15.77 | 242.50 | -14.14 | 140.46 | 0.3709 | -782.0 | -725.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
