SDO HMI 2011-06-13 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.22 | 49.28 | 81.72 | 285.21 | 16.30 | 170.86 | -84.67 | 73.70 | 0.9961 | 254.5 | 41.0 | |
|
previous
or next observation for the same group /

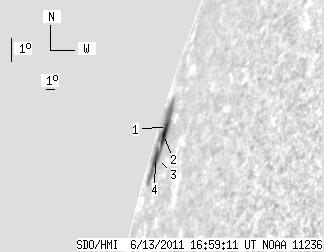

back to the solar disc SDO HMI 2011-06-13 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 49.28 | 8.37 | 285.21 | 16.94 | 171.40 | -84.14 | 73.05 | 0.9953 | -231.0 | 41.0 | |
| 5.53 | -1.00 | 29.26 | -1.00 | 16.68 | 170.87 | -84.66 | 73.33 | 0.9961 | 522.6 | 999999 | |
| 3.80 | -1.00 | 19.12 | -1.00 | 15.92 | 171.20 | -84.33 | 74.08 | 0.9955 | -249.9 | 999999 | |
| 4.17 | -1.00 | 24.97 | -1.00 | 15.94 | 170.41 | -85.13 | 74.07 | 0.9967 | 489.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
