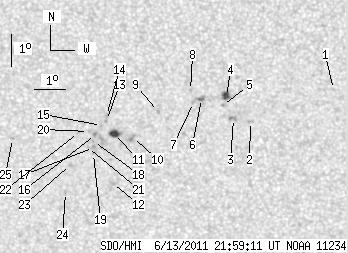

SDO HMI 2011-06-13 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.79 | 51.22 | 5.10 | 26.76 | -15.64 | 244.27 | -8.49 | 153.77 | 0.3195 | -300.5 | -179.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-13 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -14.42 | 250.20 | -2.56 | 170.67 | 0.2677 | 783.0 | 500.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -15.44 | 247.56 | -5.20 | 162.68 | 0.2946 | 726.0 | 657.6 | |
| 0.00 | 3.44 | 0.00 | 1.78 | -15.34 | 247.03 | -5.73 | 160.91 | 0.2959 | 886.0 | 657.7 | |
| 4.08 | 5.35 | 2.11 | 2.76 | -14.65 | 246.83 | -5.94 | 159.44 | 0.2861 | 1143.6 | 976.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -14.93 | 246.69 | -6.07 | 159.38 | 0.2913 | 859.0 | 761.3 | |
| 0.00 | 4.17 | 0.00 | 2.16 | -14.71 | 246.03 | -6.73 | 157.06 | 0.2920 | 914.0 | 765.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.84 | 245.77 | -6.99 | 156.46 | 0.2957 | 711.0 | 534.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.46 | 245.69 | -7.07 | 155.67 | 0.2905 | 821.0 | 497.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -15.12 | 244.65 | -8.11 | 153.63 | 0.3079 | -1003.0 | -801.0 | |
| 0.00 | 2.99 | 0.00 | 1.57 | -15.95 | 243.79 | -8.97 | 152.53 | 0.3266 | -856.0 | -778.5 | |
| 5.71 | 7.43 | 2.99 | 3.90 | -15.83 | 243.21 | -9.55 | 150.88 | 0.3292 | -1116.9 | -801.5 | |
| 0.00 | 2.72 | 0.00 | 1.44 | -17.42 | 243.07 | -9.69 | 152.83 | 0.3533 | -764.0 | -510.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.41 | 242.98 | -9.78 | 149.62 | 0.3253 | -879.0 | -754.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.25 | 242.99 | -9.77 | 149.38 | 0.3230 | -871.0 | -681.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.57 | 242.81 | -9.95 | 149.46 | 0.3290 | -829.0 | -671.4 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -15.86 | 242.60 | -10.16 | 149.40 | 0.3347 | -986.0 | -863.3 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -16.27 | 242.52 | -10.24 | 149.84 | 0.3413 | -773.0 | -693.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -16.08 | 242.53 | -10.23 | 149.57 | 0.3385 | -882.0 | -708.4 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -16.46 | 242.51 | -10.25 | 150.11 | 0.3440 | -564.0 | -580.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.76 | 242.38 | -10.38 | 148.72 | 0.3353 | -778.0 | -582.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -16.27 | 242.32 | -10.44 | 149.38 | 0.3429 | -802.0 | -536.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.80 | 242.06 | -10.70 | 147.99 | 0.3385 | -832.0 | -703.4 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -16.82 | 241.74 | -11.02 | 148.87 | 0.3553 | -684.0 | -601.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -17.72 | 241.53 | -11.23 | 149.71 | 0.3695 | -919.0 | -662.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.99 | 239.91 | -12.85 | 143.52 | 0.3610 | -795.0 | -554.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
