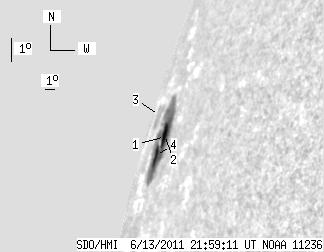

SDO HMI 2011-06-13 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.13 | 79.73 | 54.72 | 318.28 | 16.61 | 170.21 | -82.55 | 73.36 | 0.9921 | 236.3 | 33.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-13 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.62 | 68.40 | 15.68 | 253.46 | 16.63 | 171.27 | -81.49 | 73.31 | 0.9899 | -423.0 | -56.7 | |
| 5.62 | -1.00 | 20.20 | -1.00 | 16.69 | 170.92 | -81.84 | 73.26 | 0.9908 | 416.4 | 999999 | |
| 0.00 | 11.33 | 0.00 | 64.82 | 17.26 | 167.95 | -84.81 | 72.74 | 0.9963 | 304.0 | 309.1 | |
| 4.89 | -1.00 | 18.84 | -1.00 | 16.01 | 170.24 | -82.52 | 73.96 | 0.9922 | 588.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
