SDO HMI 2011-06-14 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.30 | 159.26 | 55.70 | 793.75 | 16.65 | 166.07 | -83.93 | 73.31 | 0.9931 | 76.3 | 139.6 | |
|
previous
or next observation for the same group /

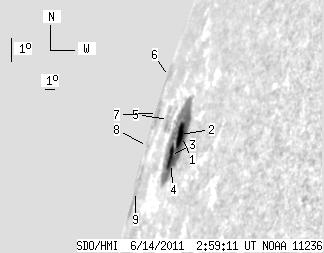

back to the solar disc SDO HMI 2011-06-14 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 99.98 | 15.53 | 278.65 | 16.71 | 171.14 | -78.86 | 73.14 | 0.9827 | -512.5 | -28.1 | |
| 6.25 | -1.00 | 17.09 | -1.00 | 16.77 | 170.70 | -79.30 | 73.10 | 0.9841 | 352.3 | 999999 | |
| 5.62 | -1.00 | 16.09 | -1.00 | 16.09 | 170.19 | -79.81 | 73.81 | 0.9855 | 502.8 | 999999 | |
| 2.54 | -1.00 | 6.99 | -1.00 | 15.84 | 170.59 | -79.41 | 74.05 | 0.9843 | -394.6 | 999999 | |
| 0.00 | 14.05 | 0.00 | 53.58 | 17.20 | 167.58 | -82.42 | 72.76 | 0.9920 | 146.0 | 317.2 | |
| 0.00 | 9.79 | 0.00 | 123.23 | 18.52 | 162.58 | -87.42 | 71.50 | 0.9991 | 177.0 | 119.9 | |
| 0.00 | 12.96 | 0.00 | 149.69 | 17.34 | 163.19 | -86.81 | 72.68 | 0.9986 | 522.0 | 412.1 | |
| 0.00 | 2.54 | 0.00 | 25.13 | 16.28 | 163.16 | -86.84 | 73.74 | 0.9986 | 550.0 | 337.5 | |
| 0.00 | 19.94 | 0.00 | 163.47 | 14.86 | 163.45 | -86.55 | 75.17 | 0.9983 | -156.0 | 45.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
