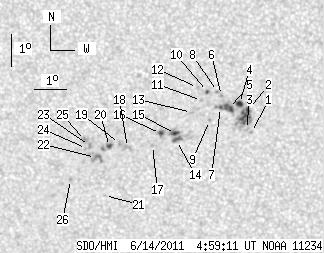

SDO HMI 2011-06-14 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.03 | 101.00 | 11.89 | 52.23 | -15.21 | 245.46 | -3.44 | 168.57 | 0.2857 | 35.5 | 43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.44 | 247.62 | -1.28 | 175.62 | 0.2831 | 820.0 | 607.1 | |
| 1.54 | 28.65 | 0.79 | 14.76 | -14.75 | 247.50 | -1.40 | 174.98 | 0.2716 | 1170.9 | 814.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -15.35 | 247.46 | -1.44 | 175.05 | 0.2818 | 533.0 | 500.5 | |
| 3.54 | -2.00 | 1.82 | -2.00 | -14.53 | 247.25 | -1.65 | 174.00 | 0.2683 | 1150.9 | 999999 | |
| 5.98 | 13.96 | 3.08 | 7.18 | -14.68 | 246.90 | -2.00 | 172.83 | 0.2716 | 1078.4 | 703.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -14.27 | 246.68 | -2.22 | 171.84 | 0.2653 | 1103.0 | 812.1 | |
| 1.18 | -5.00 | 0.61 | -5.00 | -14.65 | 246.65 | -2.25 | 171.92 | 0.2717 | 901.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -14.15 | 246.56 | -2.34 | 171.32 | 0.2635 | 773.0 | 595.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -15.06 | 246.30 | -2.60 | 170.93 | 0.2794 | 735.0 | 462.7 | |
| 1.18 | 1.63 | 0.61 | 0.84 | -14.15 | 246.25 | -2.66 | 170.17 | 0.2643 | 832.7 | 659.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -14.43 | 246.05 | -2.85 | 169.68 | 0.2696 | 860.0 | 548.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.02 | 245.93 | -2.97 | 168.95 | 0.2632 | 760.0 | 484.4 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -14.81 | 245.73 | -3.17 | 168.83 | 0.2769 | 499.0 | 306.2 | |
| 3.26 | 10.88 | 1.69 | 5.63 | -15.70 | 245.24 | -3.66 | 167.86 | 0.2931 | -862.8 | -662.9 | |
| 2.45 | -14.00 | 1.27 | -14.00 | -15.48 | 245.22 | -3.68 | 167.60 | 0.2896 | -933.2 | 999999 | |
| 1.81 | 3.63 | 0.94 | 1.88 | -15.48 | 244.74 | -4.16 | 166.06 | 0.2914 | -1040.8 | -859.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -15.86 | 244.48 | -4.42 | 165.56 | 0.2987 | -749.0 | -537.1 | |
| 0.00 | 4.26 | 0.00 | 2.21 | -15.92 | 243.68 | -5.22 | 163.17 | 0.3033 | -753.0 | -679.6 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -15.80 | 243.43 | -5.47 | 162.28 | 0.3025 | -931.0 | -711.5 | |
| 2.09 | 4.90 | 1.08 | 2.55 | -15.89 | 243.11 | -5.79 | 161.42 | 0.3057 | -1116.9 | -925.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -17.46 | 242.90 | -6.00 | 162.42 | 0.3314 | -781.0 | -594.0 | |
| 0.00 | 9.61 | 0.00 | 5.01 | -16.24 | 242.66 | -6.24 | 160.47 | 0.3137 | -961.0 | -756.1 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -15.86 | 242.48 | -6.42 | 159.51 | 0.3088 | -1055.0 | -862.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.96 | 242.38 | -6.52 | 159.34 | 0.3108 | -611.0 | -541.1 | |
| 0.00 | 3.35 | 0.00 | 1.75 | -15.70 | 242.35 | -6.55 | 158.96 | 0.3070 | -898.0 | -770.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -16.95 | 241.83 | -7.07 | 158.96 | 0.3293 | -889.0 | -677.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
