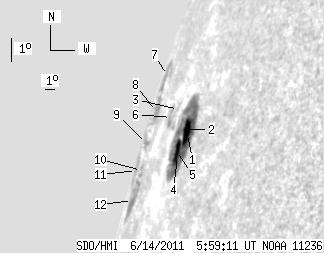

SDO HMI 2011-06-14 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.75 | 205.34 | 62.31 | 830.41 | 16.40 | 165.77 | -82.58 | 73.54 | 0.9905 | 37.3 | 50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.43 | 115.77 | 17.17 | 279.47 | 16.71 | 171.04 | -77.31 | 73.08 | 0.9776 | -519.9 | -38.8 | |
| 5.44 | -1.00 | 13.03 | -1.00 | 16.83 | 170.57 | -77.78 | 72.98 | 0.9793 | 348.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 3.15 | 17.44 | 168.41 | -79.94 | 72.45 | 0.9860 | 414.0 | 355.8 | |
| 3.99 | -1.00 | 9.59 | -1.00 | 16.00 | 170.49 | -77.86 | 73.83 | 0.9794 | -356.1 | 999999 | |
| 5.35 | -1.00 | 13.22 | -1.00 | 16.15 | 170.12 | -78.23 | 73.69 | 0.9806 | 396.4 | 999999 | |
| 0.00 | 13.69 | 0.00 | 43.19 | 17.17 | 167.54 | -80.81 | 72.76 | 0.9883 | 46.0 | 309.0 | |
| 0.00 | 15.32 | 0.00 | 106.95 | 18.45 | 162.87 | -85.48 | 71.56 | 0.9972 | 240.0 | 65.2 | |
| 0.00 | 14.69 | 0.00 | 91.53 | 17.30 | 163.09 | -85.26 | 72.72 | 0.9969 | 610.0 | 376.1 | |
| 1.54 | 8.43 | 9.30 | 66.03 | 16.27 | 162.95 | -85.41 | 73.74 | 0.9971 | 397.6 | 95.8 | |
| 0.00 | 4.53 | 0.00 | 23.13 | 15.43 | 163.90 | -84.46 | 74.58 | 0.9957 | 408.0 | 379.4 | |
| 0.00 | 10.70 | 0.00 | 99.04 | 15.40 | 161.88 | -86.47 | 74.62 | 0.9983 | -30.0 | -82.8 | |
| 0.00 | 21.12 | 0.00 | 117.92 | 14.48 | 163.55 | -84.80 | 75.54 | 0.9962 | -243.0 | -121.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
