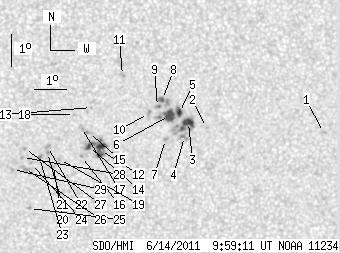

SDO HMI 2011-06-14 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.73 | 117.67 | 16.86 | 60.67 | -15.09 | 246.05 | -0.11 | 179.83 | 0.2785 | -36.7 | 20.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.89 | -15.11 | 252.08 | 5.92 | 199.85 | 0.2945 | 803.0 | 644.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.94 | 248.38 | 2.22 | 187.80 | 0.2769 | 761.0 | 591.9 | |
| 6.89 | 21.76 | 3.55 | 11.21 | -14.79 | 247.81 | 1.65 | 185.88 | 0.2731 | 1133.7 | 643.9 | |
| 0.00 | 5.26 | 0.00 | 2.71 | -15.23 | 247.69 | 1.53 | 185.29 | 0.2803 | 879.0 | 646.6 | |
| 3.72 | 21.30 | 1.91 | 10.95 | -14.47 | 247.53 | 1.36 | 184.97 | 0.2673 | 1111.5 | 774.6 | |
| 9.52 | -5.00 | 4.89 | -5.00 | -14.56 | 247.21 | 1.05 | 183.81 | 0.2685 | 1093.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -15.32 | 247.09 | 0.93 | 183.20 | 0.2812 | 762.0 | 640.9 | |
| 1.81 | 7.52 | 0.93 | 3.86 | -14.06 | 246.99 | 0.83 | 183.11 | 0.2598 | 1178.6 | 941.2 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -14.28 | 246.83 | 0.67 | 182.49 | 0.2634 | 1059.0 | 868.8 | |
| 0.00 | 2.81 | 0.00 | 1.44 | -14.50 | 246.55 | 0.39 | 181.42 | 0.2670 | 815.0 | 576.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -13.30 | 245.74 | -0.43 | 178.32 | 0.2467 | 889.0 | 679.7 | |
| 8.25 | 22.12 | 4.27 | 11.43 | -15.67 | 245.04 | -1.13 | 176.21 | 0.2872 | -980.8 | -859.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -14.31 | 244.76 | -1.40 | 174.84 | 0.2647 | -773.0 | -629.3 | |
| 2.54 | -12.00 | 1.31 | -12.00 | -15.55 | 244.66 | -1.50 | 174.90 | 0.2856 | -1101.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -15.10 | 244.66 | -1.50 | 174.76 | 0.2782 | -967.0 | -765.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -15.86 | 244.43 | -1.73 | 174.26 | 0.2913 | -843.0 | -708.9 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -14.94 | 244.44 | -1.72 | 173.94 | 0.2759 | -829.0 | -693.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -14.53 | 244.22 | -1.94 | 172.99 | 0.2694 | -778.0 | -538.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.96 | 243.74 | -2.43 | 172.02 | 0.2943 | -810.0 | -589.9 | |
| 0.00 | 2.99 | 0.00 | 1.55 | -16.18 | 243.54 | -2.62 | 171.51 | 0.2984 | -625.0 | -608.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.74 | 243.36 | -2.80 | 170.67 | 0.2915 | -979.0 | -843.8 | |
| 0.00 | 2.99 | 0.00 | 1.55 | -15.55 | 243.36 | -2.80 | 170.56 | 0.2884 | -1040.0 | -804.5 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -15.90 | 243.10 | -3.06 | 169.93 | 0.2949 | -1059.0 | -895.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -16.09 | 242.85 | -3.32 | 169.23 | 0.2988 | -900.0 | -749.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -17.53 | 242.76 | -3.41 | 169.84 | 0.3226 | -861.0 | -658.4 | |
| 0.00 | 3.17 | 0.00 | 1.65 | -16.25 | 242.62 | -3.54 | 168.63 | 0.3022 | -1018.0 | -754.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -15.61 | 242.63 | -3.53 | 168.22 | 0.2917 | -1064.0 | -916.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.90 | 242.56 | -3.60 | 168.21 | 0.2966 | -1003.0 | -711.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -16.28 | 242.24 | -3.92 | 167.47 | 0.3040 | -839.0 | -640.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
