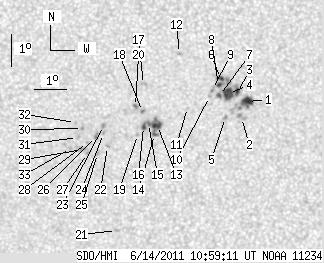

SDO HMI 2011-06-14 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.63 | 116.92 | 17.31 | 60.32 | -15.13 | 245.86 | 0.25 | 181.09 | 0.2793 | -23.6 | -26.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.25 | 16.95 | 3.73 | 8.73 | -14.78 | 247.89 | 2.28 | 188.10 | 0.2744 | 1136.7 | 643.3 | |
| 0.00 | 4.35 | 0.00 | 2.25 | -15.29 | 247.71 | 2.10 | 187.21 | 0.2825 | 696.0 | 662.6 | |
| 2.90 | 35.44 | 1.49 | 18.21 | -14.50 | 247.58 | 1.96 | 187.11 | 0.2690 | 1133.1 | 882.0 | |
| 9.25 | -3.00 | 4.75 | -3.00 | -14.53 | 247.29 | 1.68 | 186.08 | 0.2689 | 1146.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -15.29 | 247.20 | 1.59 | 185.48 | 0.2815 | 818.0 | 644.9 | |
| 2.36 | -3.00 | 1.21 | -3.00 | -14.06 | 247.04 | 1.43 | 185.34 | 0.2606 | 1079.1 | 999999 | |
| 1.81 | -3.00 | 0.93 | -3.00 | -14.59 | 247.01 | 1.40 | 185.05 | 0.2695 | 797.5 | 999999 | |
| 1.63 | -3.00 | 0.84 | -3.00 | -14.28 | 246.98 | 1.36 | 185.03 | 0.2642 | 964.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -14.40 | 246.79 | 1.18 | 184.30 | 0.2660 | 849.0 | 762.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.63 | 246.70 | 1.08 | 183.91 | 0.2697 | 667.0 | 508.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.97 | 246.00 | 0.39 | 181.38 | 0.2750 | 366.0 | 267.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -13.27 | 245.75 | 0.14 | 180.55 | 0.2461 | 912.0 | 707.9 | |
| 4.62 | 21.57 | 2.39 | 11.15 | -15.54 | 245.06 | -0.56 | 178.11 | 0.2847 | -1060.4 | -888.7 | |
| 1.00 | -13.00 | 0.52 | -13.00 | -15.83 | 244.96 | -0.65 | 177.83 | 0.2895 | -895.1 | 999999 | |
| 0.54 | -13.00 | 0.28 | -13.00 | -15.48 | 244.77 | -0.84 | 177.14 | 0.2838 | -1172.3 | 999999 | |
| 2.27 | -13.00 | 1.17 | -13.00 | -15.58 | 244.62 | -1.00 | 176.62 | 0.2855 | -1131.5 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -14.25 | 244.62 | -0.99 | 176.33 | 0.2632 | -691.0 | -639.6 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -15.10 | 244.59 | -1.03 | 176.41 | 0.2776 | -1074.0 | -898.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.83 | 244.42 | -1.19 | 176.03 | 0.2900 | -809.0 | -671.0 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -14.94 | 244.37 | -1.25 | 175.60 | 0.2752 | -1069.0 | -858.2 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -18.91 | 243.73 | -1.89 | 174.76 | 0.3420 | 877.0 | 623.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -16.21 | 243.47 | -2.14 | 173.05 | 0.2979 | -801.0 | -679.8 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -15.54 | 243.35 | -2.26 | 172.35 | 0.2871 | -1070.0 | -878.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.80 | 243.35 | -2.27 | 172.46 | 0.2913 | -991.0 | -784.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -16.44 | 243.15 | -2.46 | 172.13 | 0.3023 | -852.0 | -644.5 | |
| 0.00 | 2.90 | 0.00 | 1.50 | -15.89 | 243.13 | -2.49 | 171.78 | 0.2934 | -950.0 | -782.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.44 | 242.83 | -2.78 | 171.13 | 0.3031 | -836.0 | -685.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -16.09 | 242.84 | -2.78 | 170.95 | 0.2973 | -918.0 | -765.9 | |
| 0.00 | 3.54 | 0.00 | 1.84 | -16.31 | 242.68 | -2.94 | 170.57 | 0.3014 | -1025.0 | -758.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.64 | 242.69 | -2.93 | 170.20 | 0.2903 | -1061.0 | -887.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.93 | 242.52 | -3.09 | 169.85 | 0.2955 | -790.0 | -650.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -15.45 | 242.47 | -3.15 | 169.36 | 0.2878 | -836.0 | -683.3 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -16.28 | 242.29 | -3.32 | 169.35 | 0.3020 | -792.0 | -528.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
