SDO HMI 2011-06-14 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 26.38 | 1.36 | 13.58 | 15.55 | 249.65 | 6.24 | 337.62 | 0.2757 | 83.8 | -119.9 | |
|
previous
or next observation for the same group /

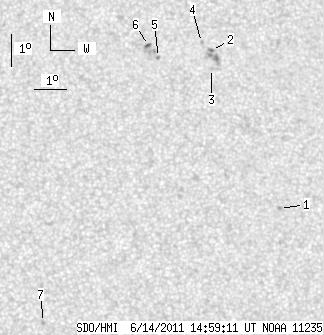

back to the solar disc SDO HMI 2011-06-14 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 11.27 | 252.52 | 9.11 | 319.20 | 0.2388 | 891.0 | 711.3 | |
| 0.82 | 11.51 | 0.42 | 5.95 | 16.21 | 250.54 | 7.13 | 335.69 | 0.2909 | -871.7 | -854.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.65 | 250.52 | 7.11 | 334.88 | 0.2821 | -852.0 | -689.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.47 | 250.23 | 6.82 | 336.98 | 0.2926 | -674.0 | -516.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.00 | 248.85 | 5.44 | 340.71 | 0.2769 | 904.0 | 771.7 | |
| 1.81 | 8.34 | 0.94 | 4.30 | 16.37 | 248.54 | 5.13 | 342.16 | 0.2813 | 782.8 | 739.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.78 | 245.14 | 1.73 | 345.90 | 0.1237 | 850.0 | 719.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
