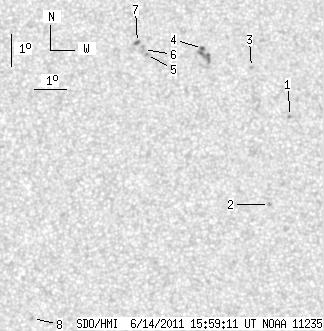

SDO HMI 2011-06-14 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.26 | 24.83 | 1.69 | 12.80 | 15.21 | 250.15 | 7.30 | 333.77 | 0.2784 | 218.3 | -250.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.89 | 14.04 | 253.31 | 10.46 | 322.24 | 0.2888 | -913.0 | -710.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 11.31 | 252.54 | 9.68 | 317.59 | 0.2456 | 871.0 | 652.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.58 | 252.14 | 9.28 | 328.48 | 0.2985 | -945.0 | -726.3 | |
| 1.63 | 11.51 | 0.85 | 5.96 | 16.18 | 250.59 | 7.74 | 333.85 | 0.2947 | -861.6 | -877.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.00 | 248.80 | 5.95 | 339.06 | 0.2798 | 913.0 | 725.4 | |
| 0.00 | 3.44 | 0.00 | 1.78 | 16.16 | 248.71 | 5.86 | 339.56 | 0.2818 | 858.0 | 660.7 | |
| 1.63 | 2.27 | 0.84 | 1.17 | 16.38 | 248.53 | 5.67 | 340.42 | 0.2842 | 875.3 | 757.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.81 | 245.11 | 2.26 | 341.98 | 0.1267 | 892.0 | 655.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
