SDO HMI 2011-06-14 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.19 | 346.51 | 99.91 | 769.47 | 16.43 | 165.58 | -76.72 | 73.31 | 0.9733 | -101.3 | -15.5 | |
|
previous
or next observation for the same group /

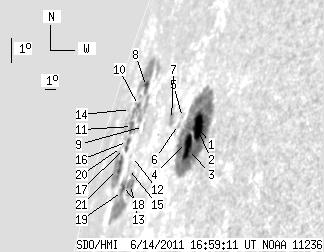

back to the solar disc SDO HMI 2011-06-14 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.59 | 174.79 | 21.83 | 286.03 | 16.88 | 170.77 | -71.53 | 72.54 | 0.9528 | -658.5 | -97.3 | |
| 4.44 | -1.00 | 7.30 | -1.00 | 16.97 | 170.38 | -71.92 | 72.48 | 0.9548 | 252.1 | 999999 | |
| 7.88 | -1.00 | 12.94 | -1.00 | 16.18 | 170.38 | -71.92 | 73.31 | 0.9544 | -560.9 | 999999 | |
| 5.89 | -1.00 | 9.84 | -1.00 | 16.39 | 169.97 | -72.33 | 73.11 | 0.9566 | 297.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.63 | 17.17 | 168.76 | -73.54 | 72.39 | 0.9625 | 422.0 | 364.5 | |
| 0.00 | 1.90 | 0.00 | 3.46 | 16.95 | 168.54 | -73.76 | 72.64 | 0.9635 | 435.0 | 385.8 | |
| 0.00 | 5.98 | 0.00 | 11.57 | 17.09 | 167.54 | -74.76 | 72.55 | 0.9678 | 160.0 | 171.1 | |
| 2.72 | 77.02 | 7.85 | 227.94 | 18.08 | 162.40 | -79.90 | 71.81 | 0.9859 | 300.6 | 97.3 | |
| 0.00 | 2.08 | 0.00 | 5.17 | 16.82 | 163.98 | -78.32 | 73.02 | 0.9810 | 534.0 | 423.5 | |
| 1.63 | -8.00 | 4.85 | -8.00 | 17.46 | 162.03 | -80.27 | 72.45 | 0.9869 | 295.1 | 999999 | |
| 4.17 | -8.00 | 12.31 | -8.00 | 16.79 | 162.10 | -80.20 | 73.12 | 0.9866 | 333.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 1.17 | 15.86 | 163.60 | -78.70 | 74.02 | 0.9821 | 288.0 | 313.2 | |
| 3.17 | 46.76 | 7.55 | 119.53 | 14.99 | 164.47 | -77.83 | 74.87 | 0.9791 | -329.7 | -39.3 | |
| 0.00 | 0.82 | 0.00 | 2.79 | 17.31 | 160.66 | -81.64 | 72.64 | 0.9903 | -422.0 | -403.9 | |
| 0.00 | 2.27 | 0.00 | 5.88 | 15.48 | 163.49 | -78.81 | 74.41 | 0.9824 | 375.0 | 369.0 | |
| 0.54 | 7.25 | 1.63 | 21.65 | 16.31 | 161.99 | -80.31 | 73.61 | 0.9869 | -189.2 | 74.1 | |
| 0.72 | -16.00 | 2.18 | -16.00 | 16.09 | 161.80 | -80.50 | 73.85 | 0.9874 | -250.2 | 999999 | |
| 1.81 | -13.00 | 4.80 | -13.00 | 14.94 | 163.25 | -79.05 | 74.97 | 0.9831 | 359.5 | 999999 | |
| 2.63 | -13.00 | 6.83 | -13.00 | 14.75 | 163.51 | -78.79 | 75.15 | 0.9822 | -210.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 4.43 | 16.11 | 161.14 | -81.16 | 73.84 | 0.9890 | -427.0 | -379.8 | |
| 0.00 | 24.92 | 0.00 | 78.22 | 15.42 | 161.57 | -80.73 | 74.53 | 0.9879 | -384.0 | -134.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
