SDO HMI 2011-06-14 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.36 | 153.59 | 26.56 | 79.37 | -14.87 | 246.37 | 4.63 | 196.03 | 0.2865 | 196.9 | -80.4 | |
|
previous
or next observation for the same group /

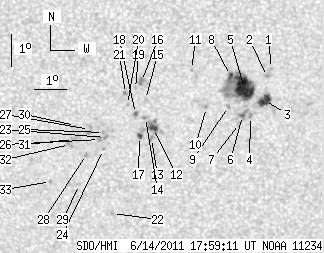

back to the solar disc SDO HMI 2011-06-14 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | -13.70 | 248.60 | 6.86 | 204.69 | 0.2790 | 825.0 | 633.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -13.95 | 248.49 | 6.74 | 203.93 | 0.2821 | 964.0 | 794.4 | |
| 9.51 | 11.24 | 4.93 | 5.82 | -14.71 | 248.41 | 6.67 | 202.63 | 0.2932 | 1042.6 | 907.6 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -15.22 | 247.99 | 6.24 | 200.68 | 0.2984 | 850.0 | 728.3 | |
| 31.53 | 69.13 | 16.28 | 35.68 | -14.33 | 247.77 | 6.03 | 201.14 | 0.2833 | 1171.5 | 533.3 | |
| 1.54 | 6.43 | 0.80 | 3.34 | -15.18 | 247.73 | 5.99 | 199.94 | 0.2964 | 785.4 | 617.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.44 | 247.64 | 5.90 | 199.37 | 0.2999 | 657.0 | 475.1 | |
| 2.81 | -5.00 | 1.45 | -5.00 | -13.92 | 247.32 | 5.57 | 200.20 | 0.2741 | 1055.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -14.90 | 247.28 | 5.53 | 198.87 | 0.2894 | 854.0 | 618.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.93 | 246.58 | 4.84 | 196.62 | 0.2863 | 792.0 | 674.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -13.73 | 246.09 | 4.34 | 196.21 | 0.2646 | -524.0 | -417.7 | |
| 3.53 | 18.67 | 1.83 | 9.66 | -15.59 | 244.92 | 3.18 | 190.63 | 0.2905 | -1035.9 | -698.5 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -15.91 | 244.86 | 3.12 | 190.24 | 0.2956 | -975.0 | -735.2 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -15.24 | 244.66 | 2.92 | 190.00 | 0.2840 | -964.0 | -735.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.67 | 244.66 | 2.91 | 190.35 | 0.2746 | -818.0 | -619.3 | |
| 0.00 | 4.98 | 0.00 | 2.56 | -14.11 | 244.52 | 2.78 | 190.27 | 0.2647 | -979.0 | -898.1 | |
| 2.08 | -12.00 | 1.08 | -12.00 | -15.85 | 244.48 | 2.74 | 189.04 | 0.2935 | -975.6 | 999999 | |
| 0.36 | 1.63 | 0.19 | 0.84 | -15.12 | 244.35 | 2.60 | 189.01 | 0.2810 | -1144.5 | -987.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.33 | 244.34 | 2.59 | 189.45 | 0.2679 | -958.0 | -723.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.83 | 244.09 | 2.34 | 188.29 | 0.2756 | -1007.0 | -832.6 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -14.48 | 244.02 | 2.28 | 188.24 | 0.2697 | -1123.0 | -834.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.31 | 243.65 | 1.91 | 185.48 | 0.3324 | 847.0 | 709.9 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -15.88 | 243.41 | 1.66 | 185.51 | 0.2917 | -1050.0 | -856.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -16.26 | 243.34 | 1.60 | 185.18 | 0.2980 | -798.0 | -665.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.72 | 243.34 | 1.60 | 185.35 | 0.2889 | -1100.0 | -878.9 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -15.94 | 243.22 | 1.47 | 184.86 | 0.2925 | -1085.0 | -834.1 | |
| 0.00 | 4.08 | 0.00 | 2.11 | -15.62 | 242.90 | 1.15 | 183.89 | 0.2867 | -658.0 | -807.4 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -16.42 | 242.81 | 1.06 | 183.41 | 0.3000 | -965.0 | -747.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -17.38 | 242.59 | 0.84 | 182.56 | 0.3157 | -769.0 | -500.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -15.50 | 242.45 | 0.71 | 182.42 | 0.2842 | -841.0 | -676.0 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -15.94 | 242.39 | 0.65 | 182.14 | 0.2916 | -850.0 | -765.5 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -16.10 | 242.27 | 0.52 | 181.71 | 0.2942 | -899.0 | -688.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -17.28 | 241.66 | -0.08 | 179.75 | 0.3138 | -941.0 | -712.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
