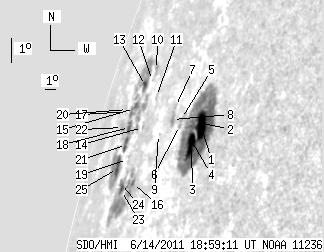

SDO HMI 2011-06-14 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.34 | 374.47 | 130.91 | 767.85 | 16.47 | 165.62 | -75.57 | 73.20 | 0.9690 | 14.6 | -22.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.22 | 182.21 | 23.18 | 282.63 | 16.90 | 170.73 | -70.45 | 72.43 | 0.9472 | -690.3 | -98.6 | |
| 4.71 | -1.00 | 7.33 | -1.00 | 17.02 | 170.34 | -70.85 | 72.34 | 0.9494 | 245.2 | 999999 | |
| 8.25 | -1.00 | 12.81 | -1.00 | 16.26 | 170.31 | -70.88 | 73.14 | 0.9491 | -510.3 | 999999 | |
| 3.62 | -1.00 | 5.73 | -1.00 | 16.51 | 170.00 | -71.19 | 72.91 | 0.9509 | 347.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 2.48 | 17.12 | 168.48 | -72.71 | 72.38 | 0.9587 | 347.0 | 350.2 | |
| 0.00 | 1.81 | 0.00 | 3.10 | 16.90 | 168.49 | -72.70 | 72.61 | 0.9585 | 429.0 | 369.3 | |
| 0.00 | 2.27 | 0.00 | 4.13 | 17.49 | 167.42 | -73.77 | 72.08 | 0.9637 | 457.0 | 387.7 | |
| 0.00 | 5.89 | 0.00 | 10.64 | 17.08 | 167.52 | -73.67 | 72.50 | 0.9631 | 201.0 | 173.4 | |
| 0.00 | 0.72 | 0.00 | 1.40 | 16.58 | 166.39 | -74.80 | 73.08 | 0.9678 | 374.0 | 408.8 | |
| 0.00 | 4.17 | 0.00 | 10.01 | 18.62 | 163.42 | -77.77 | 71.16 | 0.9795 | 279.0 | 270.1 | |
| 0.00 | 2.08 | 0.00 | 4.56 | 17.77 | 164.66 | -76.53 | 71.96 | 0.9749 | 533.0 | 474.0 | |
| 0.00 | 0.72 | 0.00 | 1.75 | 18.27 | 163.35 | -77.84 | 71.53 | 0.9796 | 339.0 | 327.2 | |
| 4.08 | 30.54 | 10.57 | 83.27 | 18.09 | 162.50 | -78.69 | 71.74 | 0.9823 | 379.4 | -59.5 | |
| 0.00 | 1.00 | 0.00 | 2.28 | 16.77 | 164.02 | -77.17 | 73.02 | 0.9771 | 457.0 | 467.9 | |
| 4.26 | 48.20 | 11.55 | 125.92 | 17.35 | 161.87 | -79.32 | 72.53 | 0.9842 | 352.7 | 324.2 | |
| 1.72 | 57.17 | 3.68 | 132.68 | 15.01 | 164.78 | -76.41 | 74.79 | 0.9739 | -359.2 | -66.4 | |
| 1.99 | -15.00 | 5.68 | -15.00 | 17.24 | 161.32 | -79.87 | 72.65 | 0.9857 | -180.6 | 999999 | |
| 4.08 | -15.00 | 10.94 | -15.00 | 16.74 | 161.99 | -79.20 | 73.14 | 0.9837 | 340.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 1.54 | 15.74 | 163.14 | -78.05 | 74.11 | 0.9799 | 524.0 | 499.0 | |
| 0.00 | 1.27 | 0.00 | 3.93 | 17.30 | 160.64 | -80.55 | 72.62 | 0.9876 | -368.0 | -400.5 | |
| 3.99 | -15.00 | 10.48 | -15.00 | 16.21 | 162.31 | -78.88 | 73.67 | 0.9827 | 310.3 | 999999 | |
| 0.00 | 3.62 | 0.00 | 11.06 | 16.72 | 160.73 | -80.46 | 73.20 | 0.9873 | -471.0 | -435.6 | |
| 2.72 | -16.00 | 6.42 | -16.00 | 14.77 | 163.48 | -77.71 | 75.09 | 0.9786 | -243.9 | 999999 | |
| 2.90 | -16.00 | 7.00 | -16.00 | 14.98 | 163.21 | -77.98 | 74.88 | 0.9796 | 470.6 | 999999 | |
| 5.80 | 30.72 | 15.54 | 86.47 | 15.44 | 161.93 | -79.26 | 74.47 | 0.9838 | 212.0 | -200.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
