SDO HMI 2011-06-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.65 | 176.45 | 25.72 | 91.36 | -14.85 | 246.64 | 6.01 | 200.37 | 0.2936 | 117.6 | 68.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

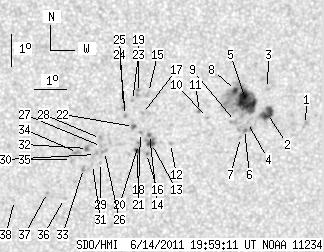

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.81 | 0.00 | 1.99 | -15.05 | 249.80 | 9.16 | 209.20 | 0.3167 | 742.0 | 538.2 | |
| 10.33 | 15.77 | 5.37 | 8.19 | -14.70 | 248.57 | 7.94 | 206.38 | 0.3020 | 996.5 | 643.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -13.91 | 248.55 | 7.91 | 207.55 | 0.2901 | 715.0 | 636.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.99 | 247.95 | 7.32 | 204.16 | 0.3018 | 779.0 | 637.4 | |
| 27.73 | 81.55 | 14.36 | 42.19 | -14.35 | 247.90 | 7.26 | 204.92 | 0.2919 | 1177.8 | 534.8 | |
| 0.00 | 6.89 | 0.00 | 3.58 | -15.21 | 247.86 | 7.23 | 203.60 | 0.3046 | 709.0 | 592.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -15.46 | 247.74 | 7.11 | 202.92 | 0.3077 | 666.0 | 474.6 | |
| 2.72 | -5.00 | 1.40 | -5.00 | -13.98 | 247.54 | 6.90 | 204.39 | 0.2836 | 941.9 | 999999 | |
| 0.00 | 4.89 | 0.00 | 2.54 | -14.95 | 247.57 | 6.93 | 203.08 | 0.2988 | 547.0 | 436.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.83 | 246.68 | 6.04 | 200.54 | 0.2912 | 813.0 | 627.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -14.64 | 246.42 | 5.78 | 199.97 | 0.2868 | 890.0 | 646.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.65 | 245.52 | 4.89 | 196.05 | 0.2982 | 582.0 | 387.6 | |
| 3.44 | 10.60 | 1.78 | 5.49 | -15.65 | 244.92 | 4.29 | 194.16 | 0.2956 | -963.7 | -779.3 | |
| 1.36 | -13.00 | 0.70 | -13.00 | -15.36 | 244.85 | 4.22 | 194.19 | 0.2907 | -965.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -14.03 | 244.80 | 4.16 | 195.25 | 0.2688 | -655.0 | -439.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.97 | 244.77 | 4.14 | 193.42 | 0.3001 | -739.0 | -606.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -14.70 | 244.62 | 3.98 | 194.01 | 0.2789 | -843.0 | -537.9 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -15.30 | 244.57 | 3.93 | 193.32 | 0.2885 | -1010.0 | -914.7 | |
| 0.00 | 3.35 | 0.00 | 1.72 | -14.03 | 244.48 | 3.85 | 194.15 | 0.2675 | -715.0 | -840.6 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -15.68 | 244.51 | 3.88 | 192.83 | 0.2945 | -810.0 | -703.7 | |
| 1.90 | 2.90 | 0.99 | 1.50 | -15.87 | 244.48 | 3.85 | 192.59 | 0.2975 | -884.6 | -805.6 | |
| 2.17 | 2.45 | 1.12 | 1.26 | -15.11 | 244.34 | 3.71 | 192.73 | 0.2845 | -1011.6 | -844.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -14.29 | 244.30 | 3.66 | 193.27 | 0.2709 | -951.0 | -719.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -14.76 | 244.08 | 3.45 | 192.14 | 0.2779 | -1029.0 | -788.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -14.51 | 244.02 | 3.38 | 192.11 | 0.2735 | -1111.0 | -888.3 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -15.90 | 243.44 | 2.80 | 189.23 | 0.2947 | -862.0 | -735.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -15.74 | 243.34 | 2.71 | 189.00 | 0.2918 | -1018.0 | -783.4 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -15.49 | 243.31 | 2.67 | 189.03 | 0.2875 | -961.0 | -747.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -16.25 | 243.32 | 2.68 | 188.64 | 0.3001 | -624.0 | -537.6 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -16.00 | 243.15 | 2.52 | 188.26 | 0.2955 | -847.0 | -685.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -16.31 | 243.06 | 2.43 | 187.81 | 0.3006 | -831.0 | -625.7 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -15.80 | 242.90 | 2.26 | 187.52 | 0.2918 | -1194.0 | -901.1 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -16.44 | 242.78 | 2.14 | 186.85 | 0.3021 | -869.0 | -756.5 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -15.93 | 242.58 | 1.95 | 186.43 | 0.2932 | -987.0 | -867.6 | |
| 0.00 | 3.17 | 0.00 | 1.64 | -16.15 | 242.39 | 1.76 | 185.73 | 0.2966 | -844.0 | -613.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -17.40 | 242.18 | 1.55 | 184.69 | 0.3170 | -612.0 | -530.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -17.21 | 241.64 | 1.01 | 183.08 | 0.3132 | -807.0 | -656.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -17.46 | 240.59 | -0.05 | 179.86 | 0.3170 | -638.0 | -493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
