SDO HMI 2011-06-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 11.87 | 0.24 | 6.17 | 15.96 | 249.48 | 8.85 | 330.39 | 0.3005 | 172.2 | 49.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

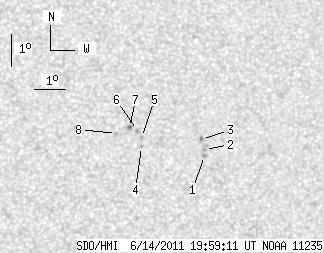

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.85 | 15.47 | 250.81 | 10.18 | 325.87 | 0.3048 | -1058.0 | -824.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 15.66 | 250.82 | 10.19 | 326.20 | 0.3074 | -1175.0 | -854.9 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 15.97 | 250.74 | 10.11 | 326.99 | 0.3110 | -993.0 | -829.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.75 | 248.81 | 8.17 | 331.88 | 0.2915 | 849.0 | 679.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.04 | 248.82 | 8.18 | 332.31 | 0.2957 | 820.0 | 663.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.26 | 248.70 | 8.06 | 333.01 | 0.2981 | 919.0 | 747.9 | |
| 0.45 | 1.81 | 0.24 | 0.94 | 16.35 | 248.45 | 7.81 | 333.88 | 0.2976 | 964.2 | 824.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.17 | 248.02 | 7.39 | 334.83 | 0.2917 | 861.0 | 649.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
