SDO HMI 2011-06-14 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.32 | 178.80 | 24.05 | 92.84 | -14.88 | 246.63 | 7.10 | 203.60 | 0.3013 | 33.1 | 40.0 | |
|
previous
or next observation for the same group /

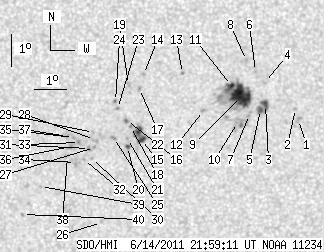

back to the solar disc SDO HMI 2011-06-14 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.26 | 0.00 | 1.71 | -15.08 | 249.84 | 10.32 | 212.10 | 0.3270 | 767.0 | 630.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.73 | 249.73 | 10.21 | 212.41 | 0.3211 | 845.0 | 676.1 | |
| 5.53 | 12.69 | 2.88 | 6.61 | -14.60 | 248.77 | 9.24 | 210.13 | 0.3110 | 891.6 | 815.7 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -13.91 | 248.71 | 9.18 | 211.17 | 0.3006 | 831.0 | 648.7 | |
| 1.72 | -3.00 | 0.90 | -3.00 | -14.76 | 248.61 | 9.09 | 209.46 | 0.3120 | 1079.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.56 | 248.41 | 8.88 | 210.96 | 0.2931 | 908.0 | 692.1 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -14.92 | 248.27 | 8.75 | 208.28 | 0.3115 | 671.0 | 720.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.21 | 248.11 | 8.59 | 210.74 | 0.2856 | 846.0 | 664.9 | |
| 27.64 | 73.13 | 14.35 | 37.95 | -14.35 | 247.99 | 8.47 | 208.43 | 0.3010 | 1169.5 | 511.8 | |
| 0.00 | 16.76 | 0.00 | 8.74 | -15.17 | 247.90 | 8.38 | 206.88 | 0.3123 | 304.0 | 498.3 | |
| 2.36 | -9.00 | 1.22 | -9.00 | -14.00 | 247.66 | 8.14 | 208.06 | 0.2933 | 1111.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -14.78 | 246.80 | 7.28 | 204.33 | 0.2987 | 938.0 | 689.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -13.62 | 246.10 | 6.58 | 203.90 | 0.2761 | -799.0 | -610.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.65 | 244.88 | 5.35 | 199.79 | 0.2689 | -831.0 | -611.1 | |
| 3.90 | 14.50 | 2.02 | 7.52 | -15.70 | 244.86 | 5.34 | 197.37 | 0.3014 | -890.1 | -815.8 | |
| 3.90 | -15.00 | 2.02 | -15.00 | -15.41 | 244.79 | 5.27 | 197.45 | 0.2965 | -1005.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -14.09 | 244.76 | 5.24 | 198.85 | 0.2752 | -928.0 | -691.7 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -15.29 | 244.50 | 4.98 | 196.68 | 0.2930 | -1014.0 | -827.4 | |
| 0.00 | 2.72 | 0.00 | 1.40 | -13.96 | 244.41 | 4.89 | 197.82 | 0.2713 | -802.0 | -668.7 | |
| 1.27 | 1.81 | 0.66 | 0.94 | -15.92 | 244.42 | 4.90 | 195.81 | 0.3028 | -875.4 | -738.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.67 | 244.42 | 4.89 | 196.03 | 0.2987 | -1039.0 | -798.8 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -15.10 | 244.37 | 4.85 | 196.46 | 0.2894 | -1224.0 | -999.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.72 | 244.08 | 4.56 | 195.89 | 0.2819 | -1064.0 | -770.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -14.50 | 244.01 | 4.49 | 195.89 | 0.2780 | -970.0 | -771.7 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -15.64 | 243.97 | 4.45 | 194.67 | 0.2962 | -973.0 | -807.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -18.36 | 243.65 | 4.13 | 191.68 | 0.3390 | 809.0 | 589.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.95 | 243.38 | 3.85 | 192.53 | 0.2990 | -946.0 | -753.3 | |
| 0.00 | 3.99 | 0.00 | 2.07 | -15.70 | 243.37 | 3.85 | 192.71 | 0.2949 | -816.0 | -783.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.48 | 243.34 | 3.81 | 192.77 | 0.2911 | -970.0 | -680.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -16.30 | 243.29 | 3.76 | 192.00 | 0.3044 | -752.0 | -612.7 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -15.98 | 243.22 | 3.70 | 192.01 | 0.2990 | -1039.0 | -834.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -16.33 | 243.03 | 3.51 | 191.19 | 0.3041 | -845.0 | -594.2 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -15.79 | 242.90 | 3.37 | 191.13 | 0.2948 | -1182.0 | -1004.4 | |
| 0.00 | 3.35 | 0.00 | 1.74 | -16.43 | 242.78 | 3.26 | 190.35 | 0.3049 | -841.0 | -709.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -15.63 | 242.71 | 3.18 | 190.61 | 0.2916 | -975.0 | -861.3 | |
| 0.00 | 3.53 | 0.00 | 1.83 | -15.92 | 242.61 | 3.09 | 190.14 | 0.2960 | -1026.0 | -816.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -15.60 | 242.52 | 2.99 | 190.01 | 0.2905 | -939.0 | -800.5 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -16.24 | 242.52 | 3.00 | 189.66 | 0.3010 | -718.0 | -661.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -17.20 | 241.68 | 2.16 | 186.58 | 0.3148 | -847.0 | -715.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -18.10 | 241.11 | 1.59 | 184.62 | 0.3287 | -760.0 | -625.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
