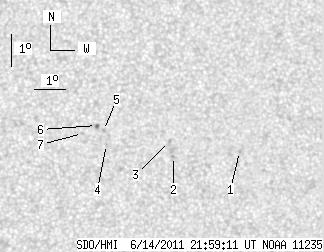

SDO HMI 2011-06-14 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 9.16 | 0.19 | 4.76 | 15.95 | 249.82 | 10.30 | 326.62 | 0.3133 | 176.2 | 35.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-14 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.56 | 253.03 | 13.51 | 318.33 | 0.3399 | -790.0 | -613.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.41 | 250.89 | 11.37 | 322.78 | 0.3155 | -942.0 | -803.8 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 15.89 | 250.79 | 11.26 | 323.95 | 0.3206 | -832.0 | -634.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.80 | 248.76 | 9.23 | 328.96 | 0.3007 | 864.0 | 612.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.24 | 248.68 | 9.16 | 329.94 | 0.3063 | 977.0 | 696.4 | |
| 0.36 | 1.45 | 0.19 | 0.75 | 16.40 | 248.46 | 8.94 | 330.79 | 0.3068 | 945.5 | 770.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.15 | 248.00 | 8.48 | 331.64 | 0.2995 | 865.0 | 622.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
