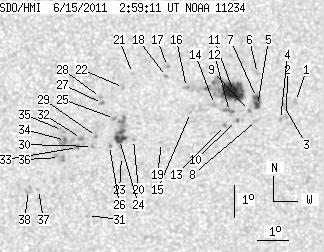

SDO HMI 2011-06-15 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.61 | 175.10 | 22.86 | 91.63 | -15.07 | 246.52 | 9.76 | 210.45 | 0.3251 | 229.5 | -26.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.34 | -14.64 | 250.21 | 13.45 | 219.93 | 0.3522 | 677.0 | 593.4 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -15.08 | 249.95 | 13.19 | 218.56 | 0.3549 | 676.0 | 405.0 | |
| 0.00 | 3.45 | 0.00 | 1.82 | -14.80 | 249.87 | 13.11 | 218.91 | 0.3505 | 814.0 | 618.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -15.21 | 249.76 | 13.00 | 217.94 | 0.3546 | 746.0 | 581.9 | |
| 3.08 | 10.06 | 1.62 | 5.30 | -14.76 | 248.99 | 12.23 | 217.09 | 0.3412 | 915.7 | 788.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.75 | 248.94 | 12.18 | 218.89 | 0.3278 | 826.0 | 578.7 | |
| 2.90 | -5.00 | 1.53 | -5.00 | -14.51 | 248.95 | 12.19 | 217.45 | 0.3375 | 882.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -15.24 | 248.99 | 12.23 | 216.22 | 0.3473 | 558.0 | 470.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.92 | 248.74 | 11.98 | 216.24 | 0.3408 | 899.0 | 753.6 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -15.24 | 248.34 | 11.58 | 214.77 | 0.3411 | 605.0 | 574.9 | |
| 29.92 | 62.56 | 15.68 | 32.75 | -14.32 | 248.20 | 11.44 | 216.09 | 0.3276 | 1125.1 | 621.3 | |
| 0.00 | 4.81 | 0.00 | 2.53 | -14.95 | 248.10 | 11.34 | 214.72 | 0.3350 | 984.0 | 780.8 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -15.39 | 248.00 | 11.24 | 213.70 | 0.3400 | 833.0 | 654.2 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -14.73 | 247.61 | 10.85 | 213.94 | 0.3274 | 616.0 | 410.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.98 | 246.85 | 10.09 | 211.64 | 0.3241 | 323.0 | 175.5 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -14.19 | 246.69 | 9.93 | 212.59 | 0.3117 | 845.0 | 621.0 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.52 | 246.06 | 9.29 | 212.11 | 0.2968 | -943.0 | -666.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -13.84 | 246.04 | 9.28 | 211.48 | 0.3010 | -691.0 | -432.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.93 | 245.97 | 9.21 | 207.89 | 0.3303 | 773.0 | 553.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -15.83 | 245.07 | 8.31 | 205.68 | 0.3222 | -634.0 | -521.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.74 | 244.95 | 8.19 | 208.59 | 0.2906 | -705.0 | -520.0 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -14.18 | 244.69 | 7.92 | 207.08 | 0.2949 | -882.0 | -645.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -16.37 | 244.71 | 7.94 | 203.98 | 0.3277 | -722.0 | -609.6 | |
| 6.71 | 22.57 | 3.51 | 11.78 | -15.83 | 244.62 | 7.86 | 204.47 | 0.3190 | -909.2 | -782.4 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -15.16 | 244.43 | 7.67 | 204.88 | 0.3077 | -1167.0 | -927.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -16.02 | 244.31 | 7.55 | 203.36 | 0.3198 | -838.0 | -719.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.68 | 244.04 | 7.28 | 204.41 | 0.2977 | -984.0 | -797.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -14.49 | 243.97 | 7.21 | 204.48 | 0.2944 | -950.0 | -702.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.73 | 243.88 | 7.12 | 202.54 | 0.3126 | -1046.0 | -891.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -16.05 | 243.77 | 7.00 | 201.81 | 0.3168 | -831.0 | -648.8 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -18.26 | 243.69 | 6.93 | 199.17 | 0.3503 | 694.0 | 588.6 | |
| 0.00 | 2.63 | 0.00 | 1.37 | -15.79 | 243.41 | 6.64 | 201.10 | 0.3106 | -1026.0 | -855.1 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -16.08 | 243.29 | 6.53 | 200.42 | 0.3144 | -915.0 | -818.3 | |
| 1.00 | 10.79 | 0.52 | 5.62 | -15.86 | 242.90 | 6.14 | 199.55 | 0.3087 | -1117.6 | -828.2 | |
| 0.00 | 3.35 | 0.00 | 1.74 | -15.54 | 242.79 | 6.03 | 199.60 | 0.3031 | -813.0 | -776.7 | |
| 0.00 | 5.35 | 0.00 | 2.79 | -16.40 | 242.72 | 5.96 | 198.45 | 0.3162 | -638.0 | -696.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -17.42 | 242.08 | 5.32 | 195.66 | 0.3293 | -679.0 | -541.8 | |
| 0.00 | 4.53 | 0.00 | 2.38 | -17.45 | 241.76 | 5.00 | 194.74 | 0.3284 | -290.0 | -618.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
