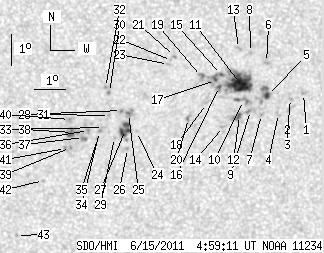

SDO HMI 2011-06-15 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.80 | 196.13 | 23.56 | 103.07 | -14.92 | 246.88 | 11.22 | 214.24 | 0.3357 | 115.4 | 134.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.66 | 250.28 | 14.62 | 222.18 | 0.3652 | 831.0 | 706.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.82 | 249.87 | 14.21 | 221.08 | 0.3626 | 856.0 | 723.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -15.20 | 249.83 | 14.17 | 220.30 | 0.3667 | 704.0 | 493.8 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -15.29 | 249.51 | 13.85 | 219.50 | 0.3645 | 569.0 | 562.1 | |
| 3.08 | 13.51 | 1.63 | 7.15 | -14.72 | 249.12 | 13.45 | 219.75 | 0.3534 | 883.1 | 843.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -13.68 | 249.02 | 13.36 | 221.59 | 0.3397 | 762.0 | 643.4 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -15.32 | 248.96 | 13.30 | 218.33 | 0.3592 | 578.0 | 467.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.36 | 248.49 | 12.83 | 221.09 | 0.3300 | 779.0 | 583.1 | |
| 0.00 | 5.17 | 0.00 | 2.74 | -15.19 | 248.60 | 12.93 | 217.80 | 0.3539 | 912.0 | 680.9 | |
| 0.00 | 8.70 | 0.00 | 4.60 | -14.88 | 248.35 | 12.69 | 217.85 | 0.3474 | 896.0 | 682.6 | |
| 27.84 | 72.27 | 14.65 | 37.99 | -14.34 | 248.22 | 12.56 | 218.58 | 0.3393 | 1146.5 | 655.4 | |
| 1.99 | 7.62 | 1.06 | 4.03 | -15.35 | 248.25 | 12.59 | 216.78 | 0.3525 | 885.4 | 541.1 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -13.24 | 248.10 | 12.43 | 220.49 | 0.3242 | 901.0 | 772.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -15.70 | 247.75 | 12.09 | 215.09 | 0.3522 | 647.0 | 508.8 | |
| 0.73 | -11.00 | 0.38 | -11.00 | -14.05 | 247.60 | 11.93 | 217.72 | 0.3293 | 1109.1 | 999999 | |
| 1.00 | -11.00 | 0.52 | -11.00 | -14.43 | 247.55 | 11.89 | 216.90 | 0.3337 | 837.2 | 999999 | |
| 1.09 | -11.00 | 0.57 | -11.00 | -14.24 | 247.41 | 11.75 | 216.94 | 0.3299 | 993.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.97 | 247.16 | 11.50 | 215.03 | 0.3370 | -562.0 | -431.4 | |
| 0.00 | 4.62 | 0.00 | 2.42 | -14.11 | 246.96 | 11.29 | 216.11 | 0.3237 | 837.0 | 646.3 | |
| 0.00 | 2.99 | 0.00 | 1.57 | -15.44 | 246.61 | 10.95 | 212.92 | 0.3383 | -784.0 | -495.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.48 | 246.07 | 10.40 | 215.11 | 0.3066 | -879.0 | -690.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -13.61 | 245.98 | 10.31 | 214.63 | 0.3075 | -674.0 | -617.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.73 | 245.89 | 10.22 | 214.16 | 0.3083 | -597.0 | -387.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.85 | 244.96 | 9.30 | 208.21 | 0.3301 | -536.0 | -399.2 | |
| 1.36 | 6.35 | 0.71 | 3.32 | -15.28 | 244.68 | 9.01 | 208.35 | 0.3196 | -896.2 | -671.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.39 | 244.70 | 9.03 | 206.76 | 0.3359 | -754.0 | -568.1 | |
| 7.71 | 14.05 | 4.04 | 7.36 | -15.78 | 244.60 | 8.94 | 207.39 | 0.3264 | -988.4 | -719.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.18 | 244.45 | 8.79 | 207.90 | 0.3164 | -1095.0 | -942.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -16.04 | 244.26 | 8.60 | 206.14 | 0.3276 | -740.0 | -541.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -14.61 | 244.04 | 8.38 | 207.68 | 0.3050 | -953.0 | -851.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.34 | 244.07 | 8.41 | 206.64 | 0.3159 | -885.0 | -718.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.45 | 243.91 | 8.25 | 207.55 | 0.3016 | -960.0 | -779.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.72 | 243.90 | 8.23 | 205.62 | 0.3202 | -799.0 | -685.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -15.84 | 243.77 | 8.11 | 205.11 | 0.3212 | -1053.0 | -880.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.07 | 243.72 | 8.06 | 204.66 | 0.3242 | -832.0 | -583.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.81 | 243.42 | 7.76 | 204.19 | 0.3183 | -933.0 | -783.3 | |
| 0.00 | 4.08 | 0.00 | 2.13 | -16.03 | 243.27 | 7.61 | 203.48 | 0.3206 | -1020.0 | -817.4 | |
| 0.00 | 9.43 | 0.00 | 4.92 | -15.87 | 242.91 | 7.25 | 202.70 | 0.3159 | -1272.0 | -931.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.35 | 242.87 | 7.20 | 201.98 | 0.3229 | -906.0 | -695.2 | |
| 0.00 | 5.17 | 0.00 | 2.69 | -15.46 | 242.80 | 7.14 | 202.92 | 0.3089 | -994.0 | -702.2 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -16.38 | 242.71 | 7.04 | 201.50 | 0.3224 | -797.0 | -651.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -17.41 | 242.04 | 6.38 | 198.56 | 0.3344 | -673.0 | -466.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.18 | 241.23 | 5.57 | 194.88 | 0.3584 | -781.0 | -599.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
