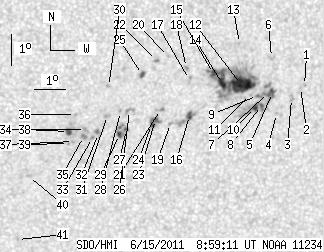

SDO HMI 2011-06-15 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.85 | 250.46 | 33.87 | 132.88 | -14.91 | 247.17 | 13.69 | 219.66 | 0.3599 | 190.9 | 189.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.50 | 250.37 | 16.89 | 226.52 | 0.3894 | 700.0 | 566.4 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -14.56 | 250.24 | 16.77 | 226.19 | 0.3886 | 776.0 | 734.0 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -14.90 | 249.97 | 16.50 | 225.08 | 0.3892 | 762.0 | 685.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.38 | 249.52 | 16.04 | 223.41 | 0.3894 | 725.0 | 593.0 | |
| 1.09 | 20.04 | 0.58 | 10.72 | -14.71 | 249.33 | 15.86 | 224.34 | 0.3798 | 896.4 | 786.9 | |
| 0.00 | 3.35 | 0.00 | 1.79 | -13.61 | 249.22 | 15.75 | 226.32 | 0.3663 | 667.0 | 582.2 | |
| 0.54 | -5.00 | 0.29 | -5.00 | -14.71 | 249.20 | 15.73 | 224.11 | 0.3783 | 1026.7 | 999999 | |
| 1.36 | 28.11 | 0.73 | 15.03 | -15.12 | 249.00 | 15.53 | 222.98 | 0.3808 | 946.0 | 596.0 | |
| 1.36 | -5.00 | 0.73 | -5.00 | -14.80 | 248.85 | 15.38 | 223.29 | 0.3754 | 937.9 | 999999 | |
| 2.99 | -8.00 | 1.60 | -8.00 | -15.18 | 248.81 | 15.34 | 222.51 | 0.3794 | 1015.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.77 | 248.62 | 15.15 | 222.93 | 0.3725 | 666.0 | 558.5 | |
| 28.56 | 107.00 | 15.19 | 56.81 | -14.45 | 248.30 | 14.83 | 222.95 | 0.3653 | 1193.2 | 612.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -13.16 | 248.15 | 14.68 | 225.27 | 0.3489 | 839.0 | 619.4 | |
| 6.26 | -12.00 | 3.32 | -12.00 | -14.42 | 247.68 | 14.21 | 221.82 | 0.3581 | 1041.8 | 999999 | |
| 3.90 | -12.00 | 2.06 | -12.00 | -14.10 | 247.37 | 13.90 | 221.82 | 0.3509 | 1051.2 | 999999 | |
| 3.45 | 11.88 | 1.83 | 6.30 | -15.43 | 246.68 | 13.21 | 217.91 | 0.3599 | -814.1 | -534.0 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -14.29 | 246.61 | 13.13 | 219.88 | 0.3450 | 631.0 | 535.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.91 | 246.49 | 13.02 | 220.36 | 0.3390 | 935.0 | 765.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.68 | 246.08 | 12.61 | 216.21 | 0.3572 | -643.0 | -528.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.56 | 245.89 | 12.42 | 219.75 | 0.3284 | -715.0 | -453.1 | |
| 0.00 | 2.90 | 0.00 | 1.53 | -15.23 | 245.73 | 12.25 | 216.23 | 0.3480 | -323.0 | -493.5 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -13.68 | 245.51 | 12.04 | 218.64 | 0.3260 | -764.0 | -528.2 | |
| 2.90 | 8.25 | 1.53 | 4.36 | -15.55 | 245.58 | 12.11 | 215.36 | 0.3508 | -841.1 | -742.2 | |
| 2.09 | -23.00 | 1.10 | -23.00 | -15.71 | 245.47 | 11.99 | 214.83 | 0.3518 | -953.3 | 999999 | |
| 2.63 | 2.99 | 1.38 | 1.57 | -14.12 | 245.09 | 11.61 | 216.80 | 0.3273 | -915.8 | -759.2 | |
| 0.00 | 4.62 | 0.00 | 2.43 | -15.26 | 244.73 | 11.26 | 213.92 | 0.3390 | -823.0 | -724.5 | |
| 0.82 | 11.15 | 0.43 | 5.89 | -15.86 | 244.67 | 11.19 | 212.76 | 0.3466 | -829.0 | -821.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.29 | 244.44 | 10.97 | 213.19 | 0.3367 | -987.0 | -780.3 | |
| 2.36 | -27.00 | 1.24 | -27.00 | -16.02 | 244.45 | 10.98 | 212.00 | 0.3468 | -877.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.50 | 244.02 | 10.54 | 213.53 | 0.3221 | -1027.0 | -772.1 | |
| 0.00 | 2.90 | 0.00 | 1.52 | -15.42 | 244.03 | 10.56 | 211.99 | 0.3348 | -871.0 | -709.4 | |
| 0.00 | 3.81 | 0.00 | 2.01 | -15.99 | 243.77 | 10.30 | 210.45 | 0.3405 | -935.0 | -804.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.12 | 243.58 | 10.11 | 209.81 | 0.3408 | -869.0 | -743.5 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -15.86 | 243.35 | 9.87 | 209.62 | 0.3352 | -1064.0 | -826.0 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -16.08 | 243.29 | 9.82 | 209.14 | 0.3379 | -1032.0 | -919.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -15.38 | 243.00 | 9.53 | 209.49 | 0.3256 | -953.0 | -698.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -16.24 | 242.98 | 9.51 | 208.13 | 0.3377 | -727.0 | -643.2 | |
| 3.54 | 11.88 | 1.86 | 6.24 | -15.92 | 242.80 | 9.33 | 208.16 | 0.3318 | -1078.3 | -759.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -16.30 | 242.82 | 9.35 | 207.65 | 0.3374 | -802.0 | -652.1 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -17.36 | 241.58 | 8.11 | 203.13 | 0.3442 | -861.0 | -687.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -19.39 | 241.32 | 7.85 | 200.28 | 0.3733 | -717.0 | -601.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
