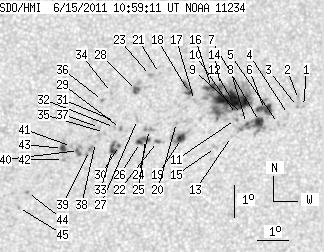

SDO HMI 2011-06-15 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.85 | 287.25 | 49.03 | 153.19 | -14.88 | 247.27 | 14.90 | 222.07 | 0.3722 | 210.1 | 184.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.66 | 250.57 | 18.19 | 228.25 | 0.4065 | 665.0 | 540.2 | |
| 0.00 | 4.35 | 0.00 | 2.35 | -14.44 | 250.38 | 18.01 | 228.40 | 0.4020 | 705.0 | 604.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.66 | 250.37 | 17.99 | 227.95 | 0.4041 | 821.0 | 694.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.91 | 250.09 | 17.72 | 227.05 | 0.4035 | 676.0 | 507.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.19 | 249.79 | 17.41 | 226.03 | 0.4029 | 700.0 | 555.7 | |
| 10.15 | 46.15 | 5.47 | 24.85 | -14.75 | 249.29 | 16.91 | 226.06 | 0.3923 | 920.9 | 630.3 | |
| 6.62 | -6.00 | 3.57 | -6.00 | -15.13 | 249.15 | 16.78 | 225.12 | 0.3949 | 1011.2 | 999999 | |
| 1.36 | -6.00 | 0.73 | -6.00 | -15.19 | 248.73 | 16.35 | 224.29 | 0.3908 | 795.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.90 | 248.58 | 16.20 | 224.56 | 0.3859 | 666.0 | 542.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.90 | 248.38 | 16.00 | 224.22 | 0.3836 | 742.0 | 560.3 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -15.06 | 248.36 | 15.98 | 223.89 | 0.3852 | 943.0 | 820.9 | |
| 40.26 | 123.76 | 21.52 | 66.08 | -14.46 | 248.21 | 15.84 | 224.78 | 0.3768 | 1154.8 | 549.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.60 | 248.27 | 15.89 | 222.74 | 0.3903 | 355.0 | 396.1 | |
| 1.18 | -12.00 | 0.63 | -12.00 | -13.98 | 247.79 | 15.41 | 224.95 | 0.3666 | 974.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -15.94 | 247.77 | 15.39 | 221.23 | 0.3890 | 713.0 | 486.1 | |
| 2.63 | -12.00 | 1.40 | -12.00 | -14.04 | 247.50 | 15.12 | 224.30 | 0.3640 | 1241.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -14.45 | 246.98 | 14.60 | 222.51 | 0.3628 | 692.0 | 453.9 | |
| 2.54 | 8.79 | 1.35 | 4.66 | -14.20 | 246.80 | 14.42 | 222.65 | 0.3579 | 740.7 | 738.5 | |
| 5.35 | 14.69 | 2.85 | 7.83 | -15.65 | 246.64 | 14.26 | 219.62 | 0.3735 | -889.7 | -503.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.14 | 246.44 | 14.06 | 220.15 | 0.3653 | -470.0 | -423.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -13.59 | 245.79 | 13.41 | 221.82 | 0.3396 | -650.0 | -453.1 | |
| 1.99 | 3.54 | 1.06 | 1.88 | -15.74 | 245.86 | 13.48 | 217.92 | 0.3668 | -595.6 | -505.8 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -13.65 | 245.50 | 13.13 | 221.10 | 0.3372 | -430.0 | -379.9 | |
| 0.00 | 5.26 | 0.00 | 2.79 | -15.36 | 245.57 | 13.20 | 218.01 | 0.3591 | -718.0 | -530.9 | |
| 3.81 | 7.89 | 2.02 | 4.19 | -15.68 | 245.47 | 13.09 | 217.22 | 0.3620 | -899.0 | -838.3 | |
| 2.27 | -25.00 | 1.20 | -25.00 | -15.77 | 245.31 | 12.93 | 216.73 | 0.3617 | -922.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -15.04 | 245.17 | 12.79 | 217.72 | 0.3509 | -833.0 | -564.6 | |
| 4.53 | 7.25 | 2.39 | 3.82 | -14.12 | 245.08 | 12.70 | 219.25 | 0.3385 | -900.2 | -510.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -15.33 | 244.63 | 12.26 | 216.06 | 0.3493 | -1027.0 | -886.9 | |
| 1.00 | 9.52 | 0.53 | 5.04 | -15.87 | 244.63 | 12.26 | 215.13 | 0.3564 | -836.7 | -812.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.10 | 244.46 | 12.08 | 216.07 | 0.3448 | -723.0 | -480.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.29 | 244.44 | 12.06 | 215.69 | 0.3470 | -988.0 | -697.1 | |
| 4.71 | -30.00 | 2.50 | -30.00 | -15.99 | 244.42 | 12.04 | 214.44 | 0.3560 | -944.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.18 | 244.28 | 11.90 | 217.35 | 0.3311 | -746.0 | -571.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.45 | 244.12 | 11.75 | 214.71 | 0.3461 | -782.0 | -583.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.44 | 244.00 | 11.63 | 216.24 | 0.3316 | -983.0 | -762.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.29 | 243.95 | 11.58 | 214.60 | 0.3424 | -826.0 | -607.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.77 | 243.85 | 11.48 | 213.56 | 0.3479 | -771.0 | -569.2 | |
| 0.00 | 4.35 | 0.00 | 2.30 | -16.02 | 243.67 | 11.30 | 212.74 | 0.3497 | -1040.0 | -809.8 | |
| 0.00 | 6.44 | 0.00 | 3.40 | -16.02 | 243.32 | 10.94 | 211.92 | 0.3465 | -1075.0 | -858.0 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -15.89 | 243.08 | 10.71 | 211.58 | 0.3428 | -1006.0 | -803.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -16.30 | 242.85 | 10.47 | 210.38 | 0.3465 | -793.0 | -683.8 | |
| 3.45 | 8.25 | 1.81 | 4.35 | -15.95 | 242.80 | 10.42 | 210.80 | 0.3412 | -1040.5 | -716.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -17.36 | 241.74 | 9.37 | 206.23 | 0.3529 | -963.0 | -852.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -17.84 | 241.48 | 9.10 | 204.98 | 0.3581 | -751.0 | -600.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
