SDO HMI 2011-06-15 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.71 | 498.74 | 127.03 | 624.82 | 16.54 | 166.07 | -65.76 | 72.32 | 0.9169 | -61.2 | 6.5 | |
|
previous
or next observation for the same group /

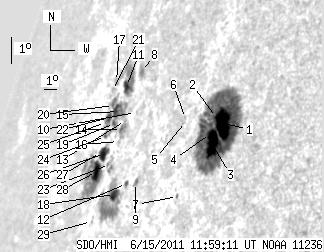

back to the solar disc SDO HMI 2011-06-15 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.10 | 254.93 | 29.93 | 273.88 | 17.15 | 170.61 | -61.22 | 71.12 | 0.8870 | -828.6 | -128.8 | |
| 1.63 | -1.00 | 1.77 | -1.00 | 17.33 | 170.03 | -61.80 | 71.00 | 0.8916 | 149.1 | 999999 | |
| 18.68 | -1.00 | 20.06 | -1.00 | 16.47 | 170.25 | -61.58 | 71.92 | 0.8890 | -615.2 | 999999 | |
| 1.72 | -1.00 | 1.87 | -1.00 | 16.82 | 169.92 | -61.91 | 71.59 | 0.8919 | 146.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.42 | 17.17 | 167.94 | -63.89 | 71.47 | 0.9066 | 266.0 | 238.0 | |
| 0.00 | 0.82 | 0.00 | 0.95 | 17.26 | 167.88 | -63.95 | 71.37 | 0.9071 | 360.0 | 284.2 | |
| 0.00 | 1.27 | 0.00 | 1.42 | 14.81 | 168.74 | -63.09 | 73.97 | 0.8988 | -303.0 | -408.1 | |
| 0.00 | 7.43 | 0.00 | 10.46 | 18.70 | 163.27 | -68.56 | 70.38 | 0.9375 | 270.0 | 239.8 | |
| 0.00 | 3.72 | 0.00 | 4.72 | 15.20 | 165.37 | -66.45 | 73.91 | 0.9224 | -512.0 | -386.7 | |
| 0.00 | 0.73 | 0.00 | 0.99 | 17.39 | 163.82 | -68.00 | 71.71 | 0.9334 | 395.0 | 346.9 | |
| 5.62 | 34.09 | 8.24 | 50.06 | 18.20 | 162.34 | -69.48 | 71.00 | 0.9424 | 531.3 | 164.2 | |
| 1.90 | 2.81 | 2.49 | 3.67 | 15.15 | 164.67 | -67.16 | 74.03 | 0.9268 | -340.3 | -369.0 | |
| 0.00 | 1.09 | 0.00 | 1.53 | 17.13 | 163.16 | -68.67 | 72.06 | 0.9372 | 479.0 | 412.4 | |
| 1.99 | 7.98 | 2.81 | 11.18 | 16.84 | 163.03 | -68.79 | 72.38 | 0.9377 | 587.4 | 505.3 | |
| 9.61 | 39.53 | 14.07 | 58.32 | 17.40 | 162.30 | -69.53 | 71.85 | 0.9422 | 647.5 | 371.8 | |
| 0.00 | 1.27 | 0.00 | 1.78 | 16.46 | 163.06 | -68.76 | 72.78 | 0.9373 | 613.0 | 536.9 | |
| 0.00 | 2.63 | 0.00 | 4.05 | 18.35 | 161.26 | -70.57 | 70.95 | 0.9483 | -356.0 | -230.9 | |
| 5.98 | 58.93 | 8.05 | 80.13 | 14.79 | 163.90 | -67.92 | 74.48 | 0.9314 | -460.5 | -37.5 | |
| 2.18 | -15.00 | 3.19 | -15.00 | 17.02 | 162.25 | -69.57 | 72.26 | 0.9423 | 637.8 | 999999 | |
| 0.27 | -15.00 | 0.41 | -15.00 | 17.58 | 161.67 | -70.15 | 71.72 | 0.9457 | 247.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.55 | 18.06 | 161.14 | -70.68 | 71.27 | 0.9488 | -388.0 | -360.0 | |
| 3.99 | -15.00 | 6.01 | -15.00 | 17.20 | 161.63 | -70.20 | 72.13 | 0.9458 | 260.2 | 999999 | |
| 0.00 | 6.53 | 0.00 | 9.23 | 15.73 | 162.82 | -69.01 | 73.58 | 0.9384 | 545.0 | 527.6 | |
| 1.18 | 6.07 | 1.76 | 9.01 | 16.60 | 161.76 | -70.06 | 72.75 | 0.9448 | 258.0 | 416.5 | |
| 0.27 | -15.00 | 0.42 | -15.00 | 17.04 | 161.39 | -70.44 | 72.32 | 0.9470 | -66.7 | 999999 | |
| 8.16 | 12.06 | 11.97 | 17.72 | 16.06 | 162.10 | -69.72 | 73.29 | 0.9426 | 485.9 | 426.1 | |
| 1.36 | -26.00 | 2.03 | -26.00 | 16.09 | 161.71 | -70.12 | 73.29 | 0.9448 | -166.7 | 999999 | |
| 8.07 | 54.76 | 11.95 | 82.71 | 15.49 | 161.80 | -70.02 | 73.92 | 0.9440 | 497.2 | 4.1 | |
| 0.00 | 0.73 | 0.00 | 1.04 | 13.92 | 162.47 | -69.36 | 75.53 | 0.9395 | 291.0 | 265.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
