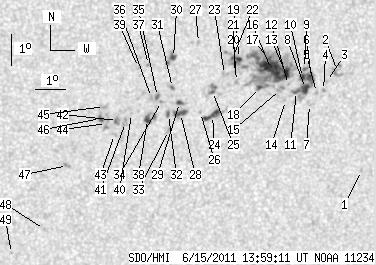

SDO HMI 2011-06-15 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.50 | 308.13 | 43.30 | 165.78 | -14.95 | 247.30 | 16.58 | 224.93 | 0.3919 | 51.3 | 281.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -17.70 | 251.62 | 20.90 | 226.72 | 0.4687 | 758.0 | 626.5 | |
| 0.00 | 8.16 | 0.00 | 4.46 | -14.50 | 250.47 | 19.74 | 230.79 | 0.4238 | 733.0 | 641.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.85 | 250.13 | 19.41 | 229.67 | 0.4231 | 589.0 | 419.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -15.13 | 250.06 | 19.33 | 229.04 | 0.4250 | 736.0 | 649.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -15.19 | 249.83 | 19.11 | 228.60 | 0.4229 | 644.0 | 592.9 | |
| 4.99 | 36.35 | 2.71 | 19.78 | -14.72 | 249.62 | 18.90 | 229.18 | 0.4156 | 805.8 | 721.1 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -15.57 | 249.63 | 18.91 | 227.62 | 0.4244 | 503.0 | 470.3 | |
| 5.98 | -6.00 | 3.26 | -6.00 | -15.06 | 249.45 | 18.73 | 228.29 | 0.4171 | 1040.7 | 999999 | |
| 1.45 | -6.00 | 0.79 | -6.00 | -14.43 | 249.36 | 18.64 | 229.35 | 0.4096 | 807.6 | 999999 | |
| 2.54 | -6.00 | 1.38 | -6.00 | -14.71 | 249.32 | 18.60 | 228.75 | 0.4120 | 1138.5 | 999999 | |
| 2.36 | -6.00 | 1.28 | -6.00 | -15.16 | 249.16 | 18.44 | 227.68 | 0.4146 | 871.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.93 | 248.88 | 18.15 | 227.66 | 0.4089 | 713.0 | 582.0 | |
| 3.72 | 130.16 | 2.01 | 70.17 | -14.62 | 248.78 | 18.06 | 228.12 | 0.4045 | 1070.5 | 666.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.44 | 248.82 | 18.10 | 226.64 | 0.4135 | 678.0 | 587.4 | |
| 0.00 | 4.17 | 0.00 | 2.26 | -15.09 | 248.62 | 17.90 | 226.98 | 0.4076 | 730.0 | 709.8 | |
| 20.85 | -13.00 | 11.24 | -13.00 | -14.46 | 248.27 | 17.55 | 227.64 | 0.3968 | 1223.2 | 999999 | |
| 1.18 | -13.00 | 0.63 | -13.00 | -14.11 | 248.18 | 17.45 | 228.16 | 0.3921 | 1180.0 | 999999 | |
| 2.36 | -13.00 | 1.27 | -13.00 | -15.02 | 247.92 | 17.20 | 226.00 | 0.3987 | -548.5 | 999999 | |
| 1.63 | 17.40 | 0.87 | 9.31 | -14.10 | 247.19 | 16.47 | 226.56 | 0.3803 | 1101.4 | 723.1 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -14.83 | 247.15 | 16.43 | 225.08 | 0.3877 | -118.0 | -143.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.54 | 247.06 | 16.34 | 225.47 | 0.3836 | 270.0 | 190.5 | |
| 0.36 | -19.00 | 0.19 | -19.00 | -14.07 | 246.96 | 16.24 | 226.22 | 0.3772 | 1146.5 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.94 | -14.60 | 246.74 | 16.01 | 224.79 | 0.3805 | -384.0 | -196.5 | |
| 8.70 | 11.78 | 4.68 | 6.34 | -15.90 | 246.45 | 15.72 | 221.87 | 0.3921 | -739.1 | -518.6 | |
| 0.54 | 7.61 | 0.29 | 4.08 | -15.14 | 246.39 | 15.66 | 223.15 | 0.3826 | -872.3 | -201.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.81 | 246.04 | 15.32 | 221.33 | 0.3866 | -759.0 | -553.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -13.59 | 245.82 | 15.10 | 225.14 | 0.3587 | -754.0 | -527.7 | |
| 6.62 | 8.34 | 3.54 | 4.46 | -15.83 | 245.39 | 14.67 | 220.06 | 0.3801 | -859.3 | -699.5 | |
| 2.63 | 4.08 | 1.40 | 2.18 | -15.48 | 245.33 | 14.61 | 220.58 | 0.3752 | -807.0 | -412.9 | |
| 2.45 | 7.07 | 1.30 | 3.74 | -14.06 | 245.04 | 14.32 | 222.71 | 0.3552 | -872.5 | -889.8 | |
| 1.36 | 2.27 | 0.72 | 1.21 | -15.01 | 245.07 | 14.35 | 220.95 | 0.3667 | -875.9 | -649.3 | |
| 2.08 | 2.63 | 1.11 | 1.40 | -15.86 | 245.00 | 14.28 | 219.27 | 0.3764 | -932.1 | -831.7 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -16.37 | 245.04 | 14.31 | 218.46 | 0.3830 | -734.0 | -536.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -15.45 | 244.74 | 14.02 | 219.50 | 0.3687 | -873.0 | -663.2 | |
| 1.90 | 3.26 | 1.01 | 1.74 | -15.29 | 244.60 | 13.88 | 219.51 | 0.3652 | -917.8 | -713.5 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -15.32 | 244.41 | 13.69 | 219.06 | 0.3636 | -1028.0 | -845.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.28 | 244.24 | 13.52 | 220.68 | 0.3491 | -926.0 | -752.4 | |
| 3.99 | 9.25 | 2.13 | 4.93 | -16.02 | 244.33 | 13.60 | 217.67 | 0.3715 | -974.1 | -787.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.37 | 243.93 | 13.20 | 219.84 | 0.3469 | -949.0 | -769.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -15.83 | 243.79 | 13.07 | 216.91 | 0.3638 | -846.0 | -675.6 | |
| 0.00 | 4.62 | 0.00 | 2.46 | -16.11 | 243.62 | 12.89 | 216.06 | 0.3657 | -812.0 | -698.7 | |
| 0.00 | 4.17 | 0.00 | 2.22 | -16.05 | 243.35 | 12.63 | 215.61 | 0.3624 | -974.0 | -920.7 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -16.49 | 243.28 | 12.56 | 214.73 | 0.3676 | -684.0 | -583.5 | |
| 0.00 | 6.25 | 0.00 | 3.32 | -16.14 | 243.00 | 12.28 | 214.71 | 0.3603 | -679.0 | -756.0 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -15.60 | 242.90 | 12.18 | 215.40 | 0.3523 | -848.0 | -694.1 | |
| 2.81 | 3.81 | 1.49 | 2.02 | -15.98 | 242.80 | 12.07 | 214.53 | 0.3563 | -1006.6 | -666.3 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -17.48 | 241.82 | 11.09 | 210.05 | 0.3681 | -816.0 | -764.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.55 | 241.20 | 10.48 | 206.00 | 0.3925 | -790.0 | -636.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -20.33 | 240.16 | 9.44 | 202.90 | 0.3969 | -730.0 | -582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
