SDO HMI 2011-06-15 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.33 | 352.57 | 52.40 | 191.37 | -14.87 | 247.34 | 18.28 | 227.80 | 0.4108 | 142.9 | 220.6 | |
|
previous
or next observation for the same group /

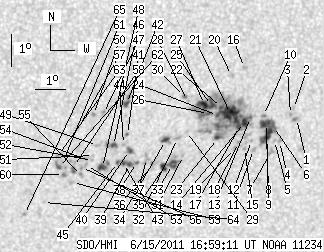

back to the solar disc SDO HMI 2011-06-15 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.55 | -14.54 | 250.59 | 21.53 | 233.03 | 0.4465 | 772.0 | 681.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -14.22 | 250.46 | 21.40 | 233.46 | 0.4420 | 709.0 | 590.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.41 | 250.38 | 21.31 | 233.00 | 0.4426 | 964.0 | 772.9 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -15.27 | 250.09 | 21.03 | 231.07 | 0.4469 | 619.0 | 525.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.23 | 249.92 | 20.86 | 230.91 | 0.4444 | 549.0 | 457.6 | |
| 1.90 | 27.64 | 1.05 | 15.22 | -14.79 | 249.84 | 20.78 | 231.62 | 0.4394 | 761.1 | 755.0 | |
| 0.00 | 3.35 | 0.00 | 1.86 | -15.61 | 249.83 | 20.76 | 230.10 | 0.4469 | 586.0 | 509.6 | |
| 11.96 | -6.00 | 6.59 | -6.00 | -15.07 | 249.64 | 20.57 | 230.83 | 0.4395 | 940.2 | 999999 | |
| 7.16 | -6.00 | 3.94 | -6.00 | -14.69 | 249.60 | 20.53 | 231.48 | 0.4354 | 1058.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -14.44 | 249.47 | 20.41 | 231.80 | 0.4315 | 858.0 | 763.6 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -15.51 | 249.24 | 20.18 | 229.50 | 0.4389 | 488.0 | 368.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.23 | 249.15 | 20.08 | 229.89 | 0.4350 | 539.0 | 491.3 | |
| 1.27 | 183.25 | 0.69 | 99.70 | -14.50 | 249.04 | 19.98 | 231.11 | 0.4268 | 754.3 | 590.3 | |
| 3.44 | -13.00 | 1.88 | -13.00 | -14.66 | 248.86 | 19.79 | 230.56 | 0.4260 | 1060.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.48 | 248.94 | 19.87 | 229.15 | 0.4349 | 674.0 | 559.2 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -12.92 | 248.70 | 19.64 | 233.74 | 0.4080 | 902.0 | 736.4 | |
| 4.08 | -13.00 | 2.23 | -13.00 | -14.78 | 248.70 | 19.64 | 230.11 | 0.4253 | 894.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.29 | 248.72 | 19.65 | 229.19 | 0.4304 | 906.0 | 712.2 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -15.48 | 248.60 | 19.54 | 228.68 | 0.4309 | 583.0 | 447.5 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -13.17 | 248.29 | 19.23 | 232.67 | 0.4050 | 836.0 | 597.0 | |
| 19.03 | -13.00 | 10.37 | -13.00 | -14.37 | 248.36 | 19.30 | 230.41 | 0.4172 | 1238.0 | 999999 | |
| 1.09 | -13.00 | 0.59 | -13.00 | -14.18 | 248.05 | 18.98 | 230.33 | 0.4114 | 1268.2 | 999999 | |
| 1.90 | -13.00 | 1.04 | -13.00 | -15.16 | 248.00 | 18.94 | 228.41 | 0.4206 | -365.7 | 999999 | |
| 1.72 | -13.00 | 0.94 | -13.00 | -14.43 | 247.93 | 18.87 | 229.69 | 0.4125 | 917.4 | 999999 | |
| 3.26 | -13.00 | 1.77 | -13.00 | -14.11 | 247.71 | 18.64 | 229.97 | 0.4066 | 1126.5 | 999999 | |
| 1.54 | -13.00 | 0.84 | -13.00 | -14.36 | 247.63 | 18.57 | 229.36 | 0.4082 | 798.9 | 999999 | |
| 3.90 | -13.00 | 2.11 | -13.00 | -14.08 | 247.47 | 18.41 | 229.68 | 0.4034 | 1234.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -13.95 | 246.90 | 17.84 | 229.07 | 0.3952 | 566.0 | 525.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.93 | 246.95 | 17.89 | 227.26 | 0.4058 | 295.0 | 149.1 | |
| 1.45 | 1.72 | 0.78 | 0.93 | -13.82 | 246.79 | 17.73 | 229.15 | 0.3926 | 951.1 | 879.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.69 | 246.92 | 17.85 | 225.80 | 0.4135 | -499.0 | -389.6 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -15.15 | 246.67 | 17.61 | 226.41 | 0.4049 | -368.0 | -193.3 | |
| 5.53 | 14.95 | 3.00 | 8.12 | -15.97 | 246.58 | 17.51 | 224.76 | 0.4127 | -666.8 | -306.4 | |
| 2.54 | 5.26 | 1.37 | 2.84 | -15.21 | 246.28 | 17.22 | 225.66 | 0.4010 | -550.9 | -421.9 | |
| 3.63 | -33.00 | 1.97 | -33.00 | -16.07 | 246.29 | 17.22 | 224.12 | 0.4104 | -833.0 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.62 | -15.94 | 245.94 | 16.88 | 223.79 | 0.4052 | -513.0 | -528.9 | |
| 0.00 | 5.35 | 0.00 | 2.89 | -15.78 | 245.70 | 16.64 | 223.67 | 0.4007 | -451.0 | -498.5 | |
| 0.36 | 9.61 | 0.20 | 5.18 | -15.90 | 245.38 | 16.32 | 222.90 | 0.3986 | -814.8 | -816.5 | |
| 1.99 | -38.00 | 1.08 | -38.00 | -15.97 | 245.15 | 16.09 | 222.40 | 0.3968 | -820.4 | 999999 | |
| 2.72 | 4.53 | 1.46 | 2.44 | -15.52 | 245.12 | 16.05 | 223.14 | 0.3914 | -899.0 | -699.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.01 | 245.01 | 15.95 | 223.89 | 0.3844 | -911.0 | -807.4 | |
| 3.35 | 7.25 | 1.79 | 3.87 | -14.03 | 244.91 | 15.84 | 225.60 | 0.3723 | -950.7 | -808.5 | |
| 1.36 | -38.00 | 0.73 | -38.00 | -15.93 | 244.95 | 15.89 | 222.11 | 0.3943 | -961.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.33 | 244.91 | 15.84 | 223.12 | 0.3868 | -842.0 | -648.0 | |
| 1.27 | -38.00 | 0.68 | -38.00 | -15.90 | 244.75 | 15.69 | 221.82 | 0.3918 | -869.6 | 999999 | |
| 2.54 | 5.89 | 1.36 | 3.16 | -15.36 | 244.58 | 15.52 | 222.48 | 0.3836 | -951.0 | -885.2 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -14.34 | 244.18 | 15.12 | 223.67 | 0.3675 | -769.0 | -668.4 | |
| 4.71 | 9.70 | 2.53 | 5.21 | -16.06 | 244.27 | 15.21 | 220.67 | 0.3885 | -907.2 | -703.0 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -15.36 | 244.06 | 14.99 | 221.53 | 0.3779 | -961.0 | -723.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.37 | 243.86 | 14.79 | 223.00 | 0.3642 | -1102.0 | -915.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.67 | 243.95 | 14.89 | 220.75 | 0.3805 | -766.0 | -517.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.83 | 243.93 | 14.86 | 220.43 | 0.3822 | -902.0 | -662.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.99 | 243.74 | 14.68 | 219.81 | 0.3822 | -833.0 | -691.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.80 | 243.70 | 14.63 | 220.05 | 0.3794 | -849.0 | -626.8 | |
| 0.00 | 2.54 | 0.00 | 1.36 | -16.31 | 243.60 | 14.54 | 218.99 | 0.3846 | -744.0 | -640.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -16.05 | 243.58 | 14.52 | 219.40 | 0.3813 | -951.0 | -702.8 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -14.78 | 243.40 | 14.33 | 221.33 | 0.3640 | -824.0 | -475.2 | |
| 0.00 | 6.16 | 0.00 | 3.30 | -16.02 | 243.32 | 14.26 | 218.95 | 0.3782 | -892.0 | -855.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -16.53 | 243.33 | 14.26 | 218.09 | 0.3845 | -645.0 | -567.4 | |
| 0.82 | 2.63 | 0.44 | 1.41 | -16.27 | 243.01 | 13.95 | 217.91 | 0.3782 | -734.7 | -676.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.89 | 242.95 | 13.89 | 218.45 | 0.3728 | -1047.0 | -911.7 | |
| 1.81 | 4.71 | 0.97 | 2.51 | -16.05 | 242.83 | 13.77 | 217.94 | 0.3736 | -970.2 | -873.1 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -15.64 | 242.80 | 13.74 | 218.61 | 0.3682 | -833.0 | -737.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -17.17 | 242.42 | 13.36 | 215.28 | 0.3838 | -675.0 | -535.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -17.55 | 241.83 | 12.77 | 213.49 | 0.3834 | -860.0 | -746.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
