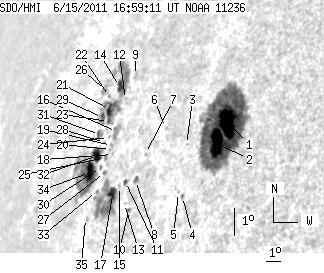

SDO HMI 2011-06-15 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.88 | 529.75 | 106.61 | 598.71 | 16.51 | 166.16 | -62.91 | 72.00 | 0.8971 | -128.9 | 0.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.73 | 271.61 | 29.21 | 268.55 | 17.15 | 170.56 | -58.51 | 70.67 | 0.8654 | -913.3 | -168.4 | |
| 20.57 | -1.00 | 20.34 | -1.00 | 16.51 | 170.20 | -58.86 | 71.47 | 0.8675 | -736.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.66 | 16.45 | 168.32 | -60.74 | 71.83 | 0.8825 | -347.0 | -279.3 | |
| 0.00 | 1.72 | 0.00 | 1.76 | 14.82 | 168.88 | -60.19 | 73.60 | 0.8763 | -540.0 | -493.9 | |
| 0.00 | 0.82 | 0.00 | 0.84 | 14.94 | 168.56 | -60.50 | 73.50 | 0.8790 | -393.0 | -337.6 | |
| 0.00 | 0.91 | 0.00 | 1.00 | 16.97 | 166.62 | -62.45 | 71.50 | 0.8960 | 650.0 | 608.4 | |
| 0.00 | 0.82 | 0.00 | 0.93 | 16.13 | 165.70 | -63.36 | 72.55 | 0.9019 | -279.0 | -173.4 | |
| 0.00 | 3.35 | 0.00 | 3.83 | 15.27 | 165.47 | -63.59 | 73.53 | 0.9028 | -544.0 | -459.0 | |
| 0.00 | 2.54 | 0.00 | 3.19 | 18.58 | 163.32 | -65.74 | 70.18 | 0.9203 | 325.0 | 312.1 | |
| 1.27 | 1.54 | 1.44 | 1.75 | 14.32 | 165.48 | -63.58 | 74.57 | 0.9020 | -521.1 | -448.3 | |
| 1.45 | 2.63 | 1.70 | 3.07 | 15.23 | 164.77 | -64.29 | 73.65 | 0.9078 | -301.8 | -435.7 | |
| 0.00 | 0.91 | 0.00 | 1.14 | 17.81 | 163.10 | -65.96 | 71.04 | 0.9210 | 482.0 | 422.3 | |
| 0.00 | 0.91 | 0.00 | 1.05 | 14.54 | 165.08 | -63.98 | 74.38 | 0.9050 | -350.0 | -328.4 | |
| 5.35 | 72.23 | 6.95 | 94.22 | 18.21 | 162.32 | -66.75 | 70.70 | 0.9263 | 597.4 | 313.5 | |
| 0.00 | 1.45 | 0.00 | 1.72 | 15.06 | 164.42 | -64.64 | 73.87 | 0.9101 | -442.0 | -381.7 | |
| 0.00 | 8.88 | 0.00 | 11.12 | 16.79 | 163.11 | -65.95 | 72.14 | 0.9202 | 617.0 | 542.1 | |
| 7.70 | 55.92 | 9.25 | 68.01 | 14.81 | 164.04 | -65.02 | 74.19 | 0.9125 | -518.8 | -24.1 | |
| 0.00 | 0.91 | 0.00 | 1.12 | 16.06 | 163.28 | -65.78 | 72.91 | 0.9186 | 581.0 | 544.7 | |
| 0.00 | 1.18 | 0.00 | 1.48 | 16.34 | 163.02 | -66.05 | 72.64 | 0.9205 | 597.0 | 613.2 | |
| 0.00 | 1.09 | 0.00 | 1.36 | 16.21 | 163.02 | -66.04 | 72.77 | 0.9204 | 652.0 | 590.1 | |
| 4.53 | -14.00 | 5.94 | -14.00 | 17.47 | 162.05 | -67.01 | 71.52 | 0.9274 | 698.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.33 | 17.88 | 161.74 | -67.32 | 71.12 | 0.9296 | 381.0 | 342.5 | |
| 2.08 | -14.00 | 2.70 | -14.00 | 17.09 | 162.25 | -66.81 | 71.91 | 0.9259 | 673.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.04 | 16.59 | 162.61 | -66.45 | 72.41 | 0.9233 | 554.0 | 537.3 | |
| 0.00 | 2.18 | 0.00 | 2.75 | 15.96 | 162.80 | -66.27 | 73.08 | 0.9217 | 635.0 | 599.2 | |
| 0.00 | 6.34 | 0.00 | 8.63 | 18.07 | 161.25 | -67.81 | 70.97 | 0.9327 | -298.0 | -204.0 | |
| 0.00 | 2.08 | 0.00 | 2.60 | 15.48 | 163.02 | -66.04 | 73.56 | 0.9199 | 641.0 | 577.3 | |
| 0.00 | 0.82 | 0.00 | 1.05 | 16.43 | 162.40 | -66.66 | 72.61 | 0.9245 | 538.0 | 502.0 | |
| 3.35 | -14.00 | 4.45 | -14.00 | 17.21 | 161.67 | -67.40 | 71.85 | 0.9296 | 435.2 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.30 | 15.64 | 162.60 | -66.46 | 73.44 | 0.9227 | 543.0 | 461.0 | |
| 0.00 | 4.26 | 0.00 | 5.62 | 16.67 | 161.81 | -67.25 | 72.41 | 0.9284 | 452.0 | 364.7 | |
| 8.52 | 78.12 | 11.09 | 103.72 | 16.01 | 162.11 | -66.95 | 73.09 | 0.9261 | 541.3 | 35.8 | |
| 0.00 | 1.09 | 0.00 | 1.37 | 14.88 | 162.76 | -66.30 | 74.24 | 0.9212 | 457.0 | 444.5 | |
| 10.33 | -32.00 | 13.54 | -32.00 | 15.47 | 161.82 | -67.24 | 73.70 | 0.9276 | 562.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.50 | 14.03 | 162.40 | -66.67 | 75.20 | 0.9230 | 291.0 | 345.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
