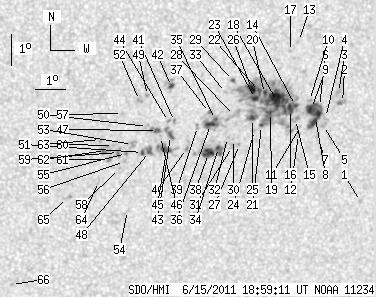

SDO HMI 2011-06-15 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.02 | 419.17 | 58.65 | 229.17 | -15.01 | 247.30 | 19.34 | 229.10 | 0.4249 | 169.2 | 153.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.14 | -17.70 | 251.69 | 23.74 | 230.16 | 0.5014 | 821.0 | 493.7 | |
| 0.00 | 4.17 | 0.00 | 2.33 | -14.54 | 250.67 | 22.72 | 234.43 | 0.4615 | 644.0 | 612.4 | |
| 0.00 | 4.08 | 0.00 | 2.27 | -14.22 | 250.50 | 22.55 | 234.82 | 0.4567 | 848.0 | 665.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.01 | 250.15 | 22.19 | 232.96 | 0.4589 | 451.0 | 447.9 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -15.26 | 250.11 | 22.15 | 232.46 | 0.4607 | 597.0 | 519.9 | |
| 1.81 | 27.91 | 1.01 | 15.50 | -14.66 | 249.90 | 21.95 | 233.31 | 0.4529 | 732.5 | 756.8 | |
| 0.00 | 3.26 | 0.00 | 1.82 | -15.61 | 249.94 | 21.99 | 231.64 | 0.4618 | 572.0 | 485.7 | |
| 10.78 | -6.00 | 5.99 | -6.00 | -15.01 | 249.80 | 21.85 | 232.55 | 0.4547 | 976.3 | 999999 | |
| 7.61 | -6.00 | 4.22 | -6.00 | -14.72 | 249.64 | 21.69 | 232.87 | 0.4501 | 1022.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -14.47 | 249.54 | 21.59 | 233.23 | 0.4467 | 800.0 | 677.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.29 | 249.33 | 21.37 | 231.45 | 0.4513 | 531.0 | 450.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.54 | 249.29 | 21.33 | 230.95 | 0.4532 | 584.0 | 483.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -12.61 | 249.00 | 21.05 | 236.16 | 0.4237 | 750.0 | 585.0 | |
| 1.81 | 200.64 | 1.00 | 110.01 | -14.62 | 249.09 | 21.13 | 232.37 | 0.4423 | 895.3 | 557.0 | |
| 0.00 | 4.44 | 0.00 | 2.46 | -15.07 | 249.13 | 21.18 | 231.61 | 0.4469 | 700.0 | 687.1 | |
| 3.81 | -14.00 | 2.10 | -14.00 | -14.75 | 248.93 | 20.98 | 231.94 | 0.4415 | 948.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.92 | 248.76 | 20.81 | 235.24 | 0.4232 | 885.0 | 685.6 | |
| 27.55 | -14.00 | 15.13 | -14.00 | -14.49 | 248.47 | 20.52 | 231.82 | 0.4334 | 1131.2 | 999999 | |
| 1.18 | -14.00 | 0.65 | -14.00 | -14.84 | 248.27 | 20.31 | 230.91 | 0.4342 | 902.2 | 999999 | |
| 2.17 | -14.00 | 1.19 | -14.00 | -14.24 | 248.01 | 20.06 | 231.69 | 0.4253 | 1198.2 | 999999 | |
| 1.81 | -14.00 | 1.00 | -14.00 | -15.25 | 248.01 | 20.05 | 229.80 | 0.4349 | -293.4 | 999999 | |
| 1.81 | -14.00 | 0.99 | -14.00 | -14.17 | 247.83 | 19.88 | 231.58 | 0.4226 | 1219.3 | 999999 | |
| 2.63 | -14.00 | 1.44 | -14.00 | -14.39 | 247.72 | 19.77 | 231.01 | 0.4233 | 947.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.41 | 247.79 | 19.83 | 229.21 | 0.4338 | 660.0 | 436.3 | |
| 2.81 | -14.00 | 1.54 | -14.00 | -15.03 | 247.68 | 19.73 | 229.77 | 0.4288 | 761.6 | 999999 | |
| 5.26 | -14.00 | 2.86 | -14.00 | -14.08 | 247.56 | 19.61 | 231.39 | 0.4183 | 1268.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.85 | 247.33 | 19.37 | 227.77 | 0.4328 | 564.0 | 403.8 | |
| 0.00 | 8.52 | 0.00 | 4.65 | -14.93 | 247.07 | 19.12 | 229.09 | 0.4205 | 96.0 | 101.1 | |
| 1.18 | 1.72 | 0.64 | 0.93 | -13.82 | 246.94 | 18.99 | 231.02 | 0.4081 | 922.8 | 852.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.69 | 247.11 | 19.16 | 227.75 | 0.4286 | -609.0 | -419.8 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -15.91 | 247.10 | 19.15 | 227.33 | 0.4307 | 137.0 | 65.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.62 | 246.90 | 18.95 | 227.56 | 0.4255 | -466.0 | -462.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -14.20 | 246.70 | 18.75 | 229.95 | 0.4089 | -437.0 | -294.3 | |
| 1.00 | 27.10 | 0.55 | 14.81 | -15.94 | 246.63 | 18.68 | 226.60 | 0.4256 | -591.7 | -366.3 | |
| 1.18 | 23.65 | 0.64 | 12.86 | -15.05 | 246.45 | 18.50 | 227.95 | 0.4143 | -415.9 | 27.8 | |
| 4.98 | -35.00 | 2.71 | -35.00 | -15.21 | 246.30 | 18.34 | 227.42 | 0.4141 | -610.7 | 999999 | |
| 1.09 | -35.00 | 0.59 | -35.00 | -14.83 | 246.23 | 18.28 | 228.03 | 0.4094 | 807.9 | 999999 | |
| 8.61 | -34.00 | 4.70 | -34.00 | -16.13 | 246.32 | 18.36 | 225.79 | 0.4240 | -835.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -15.27 | 245.87 | 17.92 | 226.66 | 0.4098 | -795.0 | -582.4 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -15.97 | 245.57 | 17.61 | 224.92 | 0.4138 | -803.0 | -710.3 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -15.10 | 245.09 | 17.14 | 225.73 | 0.3991 | -792.0 | -588.2 | |
| 2.27 | 8.61 | 1.22 | 4.62 | -14.00 | 244.91 | 16.95 | 227.55 | 0.3851 | -949.3 | -764.6 | |
| 3.44 | 6.62 | 1.86 | 3.58 | -15.55 | 245.00 | 17.05 | 224.75 | 0.4028 | -818.9 | -811.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.10 | 244.90 | 16.94 | 225.40 | 0.3968 | -1171.0 | -821.0 | |
| 5.53 | 13.50 | 3.00 | 7.32 | -16.03 | 244.91 | 16.96 | 223.75 | 0.4071 | -838.2 | -681.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.58 | 244.67 | 16.72 | 224.16 | 0.3995 | -813.0 | -656.0 | |
| 3.08 | 5.89 | 1.66 | 3.17 | -15.39 | 244.56 | 16.60 | 224.31 | 0.3961 | -957.0 | -974.3 | |
| 1.99 | 9.79 | 1.08 | 5.29 | -16.05 | 244.35 | 16.40 | 222.76 | 0.4013 | -837.6 | -768.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.28 | 244.14 | 16.19 | 225.71 | 0.3791 | -880.0 | -681.6 | |
| 0.00 | 2.99 | 0.00 | 1.61 | -15.26 | 244.22 | 16.26 | 223.97 | 0.3908 | -748.0 | -729.7 | |
| 1.63 | -48.00 | 0.88 | -48.00 | -16.08 | 244.12 | 16.17 | 222.31 | 0.3991 | -854.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -14.43 | 243.89 | 15.94 | 224.97 | 0.3779 | -1086.0 | -806.7 | |
| 0.00 | 5.89 | 0.00 | 3.17 | -15.83 | 243.77 | 15.82 | 222.16 | 0.3924 | -956.0 | -725.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.94 | 243.79 | 15.83 | 218.64 | 0.4175 | 363.0 | 424.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -16.11 | 243.60 | 15.64 | 221.34 | 0.3938 | -980.0 | -851.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.37 | 243.55 | 15.60 | 220.82 | 0.3963 | -745.0 | -635.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -14.84 | 243.37 | 15.41 | 223.24 | 0.3766 | -773.0 | -712.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.59 | 243.40 | 15.45 | 220.18 | 0.3974 | -762.0 | -577.4 | |
| 0.00 | 3.99 | 0.00 | 2.14 | -16.08 | 243.33 | 15.38 | 220.92 | 0.3906 | -1154.0 | -870.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.86 | 243.15 | 15.20 | 220.99 | 0.3860 | -976.0 | -751.2 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -16.30 | 243.05 | 15.10 | 220.03 | 0.3903 | -887.0 | -676.5 | |
| 0.00 | 7.34 | 0.00 | 3.94 | -16.01 | 242.90 | 14.95 | 220.25 | 0.3853 | -1143.0 | -863.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -15.66 | 242.71 | 14.75 | 220.51 | 0.3791 | -791.0 | -670.2 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -17.00 | 242.75 | 14.79 | 218.29 | 0.3957 | -642.0 | -523.2 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -17.51 | 241.77 | 13.81 | 215.62 | 0.3926 | -502.0 | -582.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.32 | 240.14 | 12.19 | 208.54 | 0.4161 | -674.0 | -613.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
