SDO HMI 2011-06-15 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.26 | 416.00 | 63.35 | 228.33 | -14.92 | 247.68 | 20.29 | 230.56 | 0.4353 | 79.7 | 278.4 | |
|
previous
or next observation for the same group /

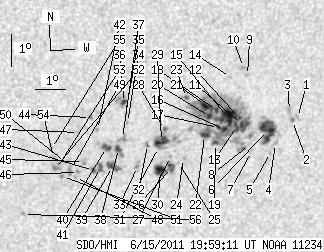

back to the solar disc SDO HMI 2011-06-15 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.37 | -14.48 | 250.80 | 23.40 | 235.29 | 0.4697 | 553.0 | 481.0 | |
| 1.09 | 1.63 | 0.61 | 0.91 | -14.57 | 250.64 | 23.24 | 234.95 | 0.4684 | 766.5 | 753.8 | |
| 0.00 | 2.81 | 0.00 | 1.57 | -14.26 | 250.50 | 23.10 | 235.37 | 0.4640 | 891.0 | 724.4 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -15.30 | 250.14 | 22.74 | 233.08 | 0.4682 | 605.0 | 448.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.58 | 250.00 | 22.60 | 232.42 | 0.4690 | 626.0 | 505.3 | |
| 22.29 | 264.54 | 12.43 | 145.88 | -14.88 | 249.82 | 22.42 | 233.45 | 0.4607 | 932.4 | 571.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -15.55 | 249.34 | 21.95 | 231.70 | 0.4607 | 608.0 | 500.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -15.32 | 249.25 | 21.85 | 231.98 | 0.4576 | 677.0 | 528.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -13.14 | 248.96 | 21.57 | 235.72 | 0.4350 | 817.0 | 655.4 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -12.89 | 248.80 | 21.41 | 236.03 | 0.4308 | 894.0 | 661.7 | |
| 1.72 | -6.00 | 0.95 | -6.00 | -14.69 | 248.91 | 21.51 | 232.72 | 0.4477 | 1025.8 | 999999 | |
| 1.36 | -6.00 | 0.75 | -6.00 | -14.46 | 248.82 | 21.42 | 233.02 | 0.4446 | 1025.2 | 999999 | |
| 4.26 | -6.00 | 2.36 | -6.00 | -14.75 | 248.75 | 21.35 | 232.41 | 0.4462 | 896.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -13.20 | 248.40 | 21.00 | 234.92 | 0.4281 | 842.0 | 567.9 | |
| 17.94 | -6.00 | 9.89 | -6.00 | -14.43 | 248.41 | 21.02 | 232.58 | 0.4391 | 1183.8 | 999999 | |
| 2.63 | -6.00 | 1.45 | -6.00 | -14.84 | 248.35 | 20.96 | 231.74 | 0.4421 | 890.1 | 999999 | |
| 2.08 | -6.00 | 1.15 | -6.00 | -14.78 | 248.14 | 20.75 | 231.59 | 0.4390 | 920.9 | 999999 | |
| 1.72 | -6.00 | 0.95 | -6.00 | -14.24 | 248.02 | 20.63 | 232.44 | 0.4325 | 1198.3 | 999999 | |
| 1.54 | -6.00 | 0.85 | -6.00 | -15.28 | 248.09 | 20.70 | 230.59 | 0.4431 | -304.8 | 999999 | |
| 1.99 | -6.00 | 1.09 | -6.00 | -14.43 | 247.81 | 20.41 | 231.80 | 0.4315 | 1056.9 | 999999 | |
| 3.63 | -6.00 | 1.98 | -6.00 | -14.08 | 247.64 | 20.24 | 232.24 | 0.4263 | 1413.7 | 999999 | |
| 3.90 | -6.00 | 2.14 | -6.00 | -15.03 | 247.70 | 20.30 | 230.54 | 0.4358 | 829.0 | 999999 | |
| 1.63 | 3.72 | 0.89 | 2.02 | -13.82 | 246.98 | 19.59 | 231.85 | 0.4156 | 812.2 | 541.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.75 | 247.06 | 19.67 | 228.35 | 0.4353 | -501.0 | -347.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -15.88 | 246.91 | 19.51 | 227.91 | 0.4347 | -680.0 | -513.4 | |
| 4.35 | 18.58 | 2.39 | 10.19 | -16.04 | 246.69 | 19.29 | 227.32 | 0.4338 | -637.6 | -322.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.69 | 246.62 | 19.22 | 227.84 | 0.4294 | 954.0 | 717.2 | |
| 0.54 | 30.45 | 0.30 | 16.63 | -14.83 | 246.34 | 18.94 | 229.01 | 0.4175 | 1025.3 | 63.8 | |
| 8.97 | -28.00 | 4.90 | -28.00 | -15.21 | 246.27 | 18.88 | 228.21 | 0.4205 | -694.8 | 999999 | |
| 8.88 | -26.00 | 4.87 | -26.00 | -16.13 | 246.33 | 18.93 | 226.63 | 0.4306 | -807.7 | 999999 | |
| 1.09 | -28.00 | 0.59 | -28.00 | -15.40 | 246.19 | 18.80 | 227.74 | 0.4214 | 214.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -15.30 | 245.82 | 18.42 | 227.36 | 0.4160 | -856.0 | -523.4 | |
| 0.00 | 3.81 | 0.00 | 2.08 | -16.00 | 245.55 | 18.15 | 225.69 | 0.4202 | -878.0 | -615.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.60 | 245.09 | 17.70 | 227.56 | 0.4002 | -739.0 | -499.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.31 | 245.00 | 17.61 | 227.97 | 0.3962 | -555.0 | -412.7 | |
| 2.36 | 8.97 | 1.27 | 4.82 | -13.97 | 244.94 | 17.55 | 228.56 | 0.3919 | -904.3 | -841.6 | |
| 0.00 | 4.71 | 0.00 | 2.55 | -15.10 | 244.97 | 17.57 | 226.41 | 0.4041 | -939.0 | -753.2 | |
| 3.17 | 6.16 | 1.72 | 3.34 | -15.42 | 244.86 | 17.47 | 225.66 | 0.4063 | -905.3 | -744.8 | |
| 7.70 | 9.70 | 4.18 | 5.27 | -15.99 | 244.72 | 17.32 | 224.39 | 0.4108 | -845.7 | -927.2 | |
| 4.89 | 5.89 | 2.65 | 3.18 | -15.39 | 244.46 | 17.07 | 225.08 | 0.4013 | -1022.7 | -859.5 | |
| 3.81 | 4.53 | 2.06 | 2.46 | -16.02 | 244.32 | 16.92 | 223.69 | 0.4067 | -903.7 | -539.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.81 | 244.12 | 16.72 | 225.58 | 0.3912 | -896.0 | -697.6 | |
| 1.72 | 2.27 | 0.93 | 1.23 | -16.12 | 244.10 | 16.70 | 223.16 | 0.4053 | -883.8 | -772.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.43 | 243.86 | 16.46 | 225.87 | 0.3840 | -966.0 | -823.2 | |
| 0.00 | 4.17 | 0.00 | 2.25 | -15.83 | 243.74 | 16.35 | 223.07 | 0.3982 | -946.0 | -735.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -16.18 | 243.61 | 16.21 | 222.22 | 0.4007 | -869.0 | -750.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.91 | 243.50 | 16.11 | 224.35 | 0.3851 | -810.0 | -602.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -16.34 | 243.52 | 16.12 | 221.79 | 0.4016 | -769.0 | -576.9 | |
| 0.00 | 4.98 | 0.00 | 2.69 | -16.08 | 243.33 | 15.94 | 221.92 | 0.3966 | -1048.0 | -844.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.86 | 243.15 | 15.76 | 221.99 | 0.3921 | -995.0 | -782.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -16.30 | 243.09 | 15.69 | 221.10 | 0.3966 | -865.0 | -705.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.89 | 242.92 | 15.53 | 221.53 | 0.3900 | -1000.0 | -854.8 | |
| 0.00 | 3.81 | 0.00 | 2.05 | -16.05 | 242.87 | 15.47 | 221.15 | 0.3913 | -1158.0 | -940.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -15.69 | 242.75 | 15.35 | 221.55 | 0.3858 | -956.0 | -776.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.41 | 242.66 | 15.26 | 221.91 | 0.3815 | -911.0 | -719.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.51 | 241.90 | 14.51 | 216.93 | 0.3993 | -795.0 | -682.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
