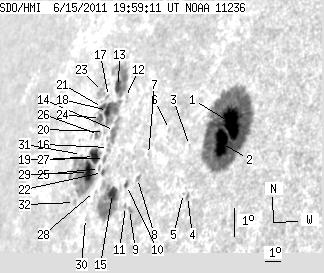

SDO HMI 2011-06-15 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.31 | 533.87 | 108.50 | 569.46 | 16.57 | 166.22 | -61.17 | 71.69 | 0.8842 | -197.9 | -0.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.81 | 276.86 | 30.82 | 261.44 | 17.18 | 170.50 | -56.89 | 70.35 | 0.8518 | -982.4 | -193.5 | |
| 22.93 | -1.00 | 21.66 | -1.00 | 16.54 | 170.22 | -57.18 | 71.14 | 0.8533 | -783.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.90 | 16.45 | 168.32 | -59.08 | 71.57 | 0.8692 | -186.0 | -184.4 | |
| 0.00 | 2.54 | 0.00 | 2.46 | 14.85 | 168.94 | -58.45 | 73.31 | 0.8620 | -596.0 | -448.5 | |
| 0.00 | 0.82 | 0.00 | 0.80 | 14.94 | 168.66 | -58.74 | 73.25 | 0.8645 | -461.0 | -402.1 | |
| 0.00 | 0.45 | 0.00 | 0.47 | 16.94 | 166.79 | -60.61 | 71.27 | 0.8820 | 411.0 | 460.2 | |
| 0.00 | 1.00 | 0.00 | 1.07 | 16.13 | 165.84 | -61.56 | 72.31 | 0.8885 | -242.0 | -159.8 | |
| 0.00 | 2.54 | 0.00 | 2.74 | 15.37 | 165.50 | -61.90 | 73.21 | 0.8903 | -567.0 | -451.8 | |
| 0.00 | 1.99 | 0.00 | 2.15 | 14.39 | 165.45 | -61.95 | 74.31 | 0.8898 | -607.0 | -543.6 | |
| 2.08 | 2.90 | 2.30 | 3.20 | 15.13 | 164.87 | -62.53 | 73.55 | 0.8948 | -386.8 | -287.4 | |
| 0.00 | 1.63 | 0.00 | 1.78 | 14.48 | 165.14 | -62.26 | 74.25 | 0.8922 | -433.0 | -353.7 | |
| 0.00 | 0.63 | 0.00 | 0.75 | 17.90 | 163.14 | -64.25 | 70.72 | 0.9098 | 397.0 | 427.7 | |
| 4.62 | 33.62 | 5.63 | 41.02 | 18.24 | 162.38 | -65.02 | 70.45 | 0.9152 | 654.8 | 241.6 | |
| 0.00 | 13.23 | 0.00 | 15.63 | 16.85 | 163.02 | -64.38 | 71.89 | 0.9097 | 772.0 | 573.6 | |
| 8.34 | 51.75 | 9.42 | 58.96 | 14.87 | 164.03 | -63.37 | 73.95 | 0.9008 | -581.1 | -83.8 | |
| 0.00 | 3.35 | 0.00 | 3.97 | 16.31 | 162.91 | -64.49 | 72.50 | 0.9100 | 675.0 | 616.6 | |
| 0.00 | 0.91 | 0.00 | 1.13 | 17.92 | 161.84 | -65.56 | 70.88 | 0.9185 | 361.0 | 354.8 | |
| 4.71 | 26.73 | 5.79 | 32.50 | 17.47 | 162.07 | -65.32 | 71.33 | 0.9166 | 689.0 | 616.8 | |
| 0.00 | 3.44 | 0.00 | 4.08 | 15.96 | 162.83 | -64.57 | 72.89 | 0.9102 | 660.0 | 612.7 | |
| 0.00 | 1.72 | 0.00 | 2.09 | 16.81 | 162.29 | -65.10 | 72.03 | 0.9146 | 627.0 | 493.6 | |
| 1.99 | -18.00 | 2.49 | -18.00 | 17.56 | 161.62 | -65.78 | 71.29 | 0.9196 | 285.0 | 999999 | |
| 1.72 | 3.81 | 2.03 | 4.46 | 15.52 | 162.94 | -64.45 | 73.36 | 0.9091 | 646.4 | 513.1 | |
| 0.00 | 8.25 | 0.00 | 10.48 | 18.07 | 161.25 | -66.14 | 70.79 | 0.9224 | -253.0 | -190.9 | |
| 4.17 | 8.88 | 5.19 | 11.08 | 17.21 | 161.71 | -65.69 | 71.66 | 0.9188 | 436.1 | 221.3 | |
| 0.00 | 2.08 | 0.00 | 2.48 | 15.64 | 162.65 | -64.75 | 73.26 | 0.9112 | 493.0 | 507.3 | |
| 0.00 | 5.17 | 0.00 | 6.37 | 16.70 | 161.90 | -65.50 | 72.19 | 0.9171 | 532.0 | 399.5 | |
| 9.06 | 74.31 | 11.06 | 92.11 | 16.01 | 162.04 | -65.36 | 72.93 | 0.9157 | 558.1 | 64.7 | |
| 0.00 | 0.54 | 0.00 | 0.64 | 14.91 | 162.70 | -64.70 | 74.05 | 0.9103 | 356.0 | 415.8 | |
| 9.88 | -27.00 | 12.11 | -27.00 | 15.50 | 161.90 | -65.50 | 73.49 | 0.9163 | 599.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.08 | 14.06 | 162.50 | -64.90 | 75.00 | 0.9111 | 414.0 | 353.4 | |
| 0.00 | 0.54 | 0.00 | 0.69 | 16.05 | 160.99 | -66.41 | 72.99 | 0.9226 | -282.0 | -301.0 | |
| 0.00 | 2.36 | 0.00 | 2.93 | 14.54 | 161.38 | -66.01 | 74.58 | 0.9190 | 516.0 | 312.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
