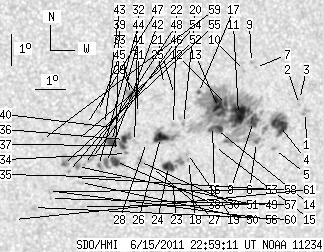

SDO HMI 2011-06-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.28 | 463.67 | 71.21 | 257.10 | -14.96 | 247.28 | 21.54 | 232.07 | 0.4514 | 84.4 | 165.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.26 | 0.00 | 2.42 | -14.51 | 250.83 | 25.10 | 236.98 | 0.4917 | 462.0 | 546.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -14.25 | 250.59 | 24.86 | 237.20 | 0.4867 | 902.0 | 705.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -14.09 | 250.57 | 24.84 | 237.46 | 0.4852 | 726.0 | 622.0 | |
| 15.95 | 31.63 | 9.02 | 17.87 | -14.91 | 249.98 | 24.24 | 235.40 | 0.4840 | 929.8 | 674.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -15.67 | 249.90 | 24.17 | 233.99 | 0.4892 | 558.0 | 548.2 | |
| 1.18 | 262.86 | 0.66 | 146.41 | -15.44 | 249.25 | 23.51 | 233.67 | 0.4793 | 725.2 | 472.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -13.07 | 248.95 | 23.22 | 237.68 | 0.4563 | 818.0 | 647.4 | |
| 9.97 | -6.00 | 5.59 | -6.00 | -14.78 | 249.07 | 23.33 | 234.65 | 0.4714 | 870.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.92 | 248.80 | 23.07 | 237.83 | 0.4530 | 837.0 | 629.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -13.17 | 248.59 | 22.85 | 237.12 | 0.4522 | 795.0 | 524.8 | |
| 26.74 | -6.00 | 14.93 | -6.00 | -14.55 | 248.53 | 22.79 | 234.46 | 0.4627 | 1071.7 | 999999 | |
| 1.72 | -6.00 | 0.96 | -6.00 | -14.23 | 248.08 | 22.35 | 234.54 | 0.4544 | 1128.0 | 999999 | |
| 16.41 | -6.00 | 9.10 | -6.00 | -14.32 | 247.82 | 22.09 | 234.06 | 0.4519 | 1175.3 | 999999 | |
| 9.43 | -6.00 | 5.25 | -6.00 | -15.02 | 247.83 | 22.10 | 232.79 | 0.4580 | 716.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -15.56 | 247.82 | 22.09 | 231.81 | 0.4627 | 254.0 | 281.1 | |
| 0.27 | -6.00 | 0.15 | -6.00 | -14.92 | 247.68 | 21.95 | 232.79 | 0.4554 | -18.7 | 999999 | |
| 0.82 | -6.00 | 0.45 | -6.00 | -13.85 | 247.10 | 21.36 | 234.08 | 0.4386 | 979.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -16.00 | 246.98 | 21.25 | 230.00 | 0.4567 | -546.0 | -440.8 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -15.78 | 246.92 | 21.19 | 230.32 | 0.4539 | -567.0 | -483.4 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -14.82 | 246.69 | 20.96 | 231.74 | 0.4422 | -791.0 | -567.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -13.90 | 246.30 | 20.56 | 232.97 | 0.4289 | 614.0 | 484.9 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -14.85 | 246.35 | 20.62 | 231.25 | 0.4383 | 188.0 | 201.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -16.60 | 246.51 | 20.78 | 228.34 | 0.4569 | 424.0 | 430.8 | |
| 8.07 | 17.22 | 4.47 | 9.55 | -16.19 | 246.33 | 20.59 | 228.82 | 0.4507 | -806.6 | -516.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -13.59 | 245.93 | 20.20 | 233.11 | 0.4214 | -595.0 | -386.8 | |
| 9.88 | 26.38 | 5.44 | 14.53 | -15.26 | 245.96 | 20.23 | 229.97 | 0.4373 | -721.0 | -94.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -16.21 | 245.75 | 20.02 | 228.00 | 0.4442 | -593.0 | -484.2 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -15.42 | 245.50 | 19.77 | 229.07 | 0.4334 | -587.0 | -353.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -14.09 | 245.21 | 19.48 | 231.16 | 0.4170 | -592.0 | -394.2 | |
| 0.00 | 3.90 | 0.00 | 2.15 | -16.02 | 245.33 | 19.60 | 227.75 | 0.4373 | -658.0 | -644.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -14.50 | 245.11 | 19.38 | 230.24 | 0.4197 | -782.0 | -543.7 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -15.38 | 245.10 | 19.36 | 228.56 | 0.4282 | -776.0 | -518.1 | |
| 2.63 | 7.25 | 1.43 | 3.94 | -13.89 | 244.83 | 19.09 | 230.99 | 0.4104 | -872.8 | -685.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.76 | 244.87 | 19.13 | 227.54 | 0.4293 | -718.0 | -632.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -16.53 | 244.91 | 19.18 | 226.26 | 0.4377 | -630.0 | -493.5 | |
| 3.72 | 22.03 | 2.03 | 12.03 | -15.32 | 244.76 | 19.02 | 228.19 | 0.4235 | -899.8 | -719.8 | |
| 3.08 | -36.00 | 1.68 | -36.00 | -15.51 | 244.67 | 18.94 | 227.73 | 0.4245 | -893.5 | 999999 | |
| 6.80 | 16.32 | 3.72 | 8.93 | -16.01 | 244.52 | 18.79 | 226.59 | 0.4279 | -892.7 | -631.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.70 | 244.49 | 18.76 | 227.12 | 0.4243 | -887.0 | -761.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -14.93 | 244.32 | 18.59 | 228.26 | 0.4145 | -878.0 | -686.4 | |
| 6.98 | -36.00 | 3.81 | -36.00 | -15.38 | 244.33 | 18.60 | 227.45 | 0.4191 | -1034.6 | 999999 | |
| 2.18 | -38.00 | 1.19 | -38.00 | -16.04 | 244.22 | 18.49 | 226.09 | 0.4248 | -957.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -14.84 | 244.05 | 18.31 | 228.03 | 0.4102 | -940.0 | -791.8 | |
| 1.18 | 3.17 | 0.64 | 1.73 | -16.14 | 243.97 | 18.23 | 225.54 | 0.4229 | -793.1 | -331.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -14.42 | 243.81 | 18.08 | 228.46 | 0.4032 | -837.0 | -672.0 | |
| 0.00 | 4.08 | 0.00 | 2.22 | -15.91 | 243.71 | 17.98 | 225.54 | 0.4176 | -833.0 | -785.6 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -14.83 | 243.45 | 17.72 | 227.12 | 0.4031 | -943.0 | -697.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -16.10 | 243.50 | 17.76 | 224.87 | 0.4172 | -814.0 | -716.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.45 | 243.56 | 17.83 | 222.68 | 0.4327 | 441.0 | 410.3 | |
| 0.00 | 2.90 | 0.00 | 1.58 | -16.68 | 243.42 | 17.68 | 223.75 | 0.4226 | -550.0 | -454.2 | |
| 0.00 | 3.08 | 0.00 | 1.68 | -16.17 | 243.27 | 17.54 | 224.40 | 0.4153 | -1021.0 | -887.4 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -15.34 | 243.16 | 17.43 | 225.72 | 0.4052 | -853.0 | -690.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.52 | 243.17 | 17.44 | 223.63 | 0.4181 | -719.0 | -524.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -16.32 | 242.98 | 17.25 | 223.67 | 0.4139 | -820.0 | -712.8 | |
| 1.27 | 10.51 | 0.69 | 5.70 | -16.10 | 242.80 | 17.07 | 223.76 | 0.4094 | -927.0 | -808.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.96 | 242.58 | 16.85 | 221.91 | 0.4167 | -655.0 | -522.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -17.18 | 242.46 | 16.73 | 221.35 | 0.4181 | -670.0 | -563.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.96 | 242.38 | 16.65 | 221.58 | 0.4146 | -783.0 | -661.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -15.30 | 242.04 | 16.30 | 223.93 | 0.3920 | -807.0 | -565.3 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -17.47 | 241.93 | 16.19 | 219.98 | 0.4158 | -695.0 | -492.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.85 | 241.33 | 15.60 | 218.33 | 0.4144 | -777.0 | -526.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
