SDO HMI 2011-06-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.41 | 573.60 | 112.17 | 580.32 | 16.61 | 166.26 | -59.48 | 71.39 | 0.8708 | -197.7 | -0.2 | |
|
previous
or next observation for the same group /

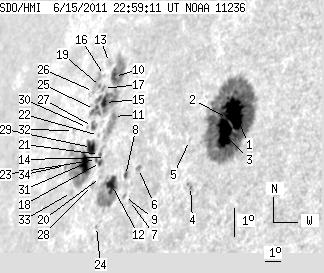

back to the solar disc SDO HMI 2011-06-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.36 | 301.75 | 29.16 | 273.06 | 17.22 | 170.48 | -55.25 | 69.99 | 0.8373 | -1007.8 | -206.3 | |
| 0.45 | -1.00 | 0.41 | -1.00 | 17.06 | 170.16 | -55.57 | 70.25 | 0.8399 | 239.4 | 999999 | |
| 22.21 | -1.00 | 20.09 | -1.00 | 16.58 | 170.20 | -55.53 | 70.80 | 0.8388 | -825.3 | 999999 | |
| 0.00 | 3.99 | 0.00 | 3.70 | 14.89 | 168.97 | -56.76 | 73.01 | 0.8472 | -641.0 | -455.7 | |
| 0.00 | 0.91 | 0.00 | 0.86 | 16.33 | 168.29 | -57.44 | 71.45 | 0.8552 | -171.0 | -167.6 | |
| 0.00 | 2.72 | 0.00 | 2.78 | 15.40 | 165.58 | -60.15 | 72.94 | 0.8766 | -592.0 | -393.2 | |
| 0.00 | 1.72 | 0.00 | 1.76 | 14.39 | 165.48 | -60.25 | 74.10 | 0.8763 | -559.0 | -512.8 | |
| 2.36 | 3.35 | 2.46 | 3.50 | 15.17 | 164.86 | -60.88 | 73.30 | 0.8821 | -413.3 | -286.7 | |
| 0.00 | 1.45 | 0.00 | 1.50 | 14.51 | 165.10 | -60.63 | 74.01 | 0.8795 | -480.0 | -432.2 | |
| 3.26 | 30.91 | 3.76 | 35.37 | 18.28 | 162.32 | -63.42 | 70.20 | 0.9043 | 645.8 | 371.0 | |
| 2.72 | 21.39 | 3.03 | 23.89 | 17.01 | 163.04 | -62.69 | 71.50 | 0.8978 | 588.9 | 587.2 | |
| 11.15 | 47.68 | 11.91 | 51.16 | 14.88 | 164.08 | -61.66 | 73.74 | 0.8879 | -600.2 | -158.7 | |
| 0.00 | 3.08 | 0.00 | 3.63 | 18.72 | 161.65 | -64.08 | 69.82 | 0.9093 | -170.0 | -109.5 | |
| 0.00 | 0.27 | 0.00 | 0.30 | 15.72 | 163.23 | -62.50 | 72.91 | 0.8951 | 484.0 | 441.3 | |
| 3.99 | 41.42 | 4.60 | 47.64 | 17.45 | 162.14 | -63.60 | 71.14 | 0.9047 | 767.5 | 577.1 | |
| 0.00 | 1.36 | 0.00 | 1.61 | 18.30 | 161.57 | -64.16 | 70.29 | 0.9095 | 142.0 | 79.8 | |
| 0.00 | 2.18 | 0.00 | 2.55 | 17.89 | 161.77 | -63.96 | 70.71 | 0.9077 | 391.0 | 347.0 | |
| 1.90 | 9.52 | 2.12 | 10.62 | 15.55 | 162.97 | -62.76 | 73.12 | 0.8969 | 667.3 | 551.4 | |
| 1.00 | 8.07 | 1.18 | 9.64 | 17.95 | 161.51 | -64.22 | 70.68 | 0.9095 | 179.2 | -260.8 | |
| 0.00 | 1.45 | 0.00 | 1.60 | 15.08 | 163.22 | -62.51 | 73.62 | 0.8946 | 381.0 | 369.9 | |
| 1.18 | -18.00 | 1.32 | -18.00 | 15.80 | 162.76 | -62.97 | 72.87 | 0.8987 | 576.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.13 | 16.40 | 162.35 | -63.38 | 72.27 | 0.9022 | 543.0 | 500.3 | |
| 0.73 | -18.00 | 0.81 | -18.00 | 15.64 | 162.64 | -63.09 | 73.07 | 0.8994 | 554.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.37 | 13.55 | 163.70 | -62.03 | 75.27 | 0.8897 | 409.0 | 395.9 | |
| 3.26 | -15.00 | 3.84 | -15.00 | 17.21 | 161.55 | -64.18 | 71.48 | 0.9086 | 298.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.19 | 17.78 | 161.10 | -64.63 | 70.91 | 0.9122 | -229.0 | -217.4 | |
| 2.54 | 4.80 | 2.95 | 5.58 | 16.68 | 161.75 | -63.99 | 72.04 | 0.9067 | 353.5 | 483.9 | |
| 0.00 | 2.90 | 0.00 | 3.23 | 14.83 | 162.80 | -62.93 | 73.95 | 0.8975 | 627.0 | 448.5 | |
| 9.34 | 12.87 | 10.73 | 14.78 | 16.01 | 162.07 | -63.66 | 72.73 | 0.9039 | 542.7 | 416.6 | |
| 0.00 | 0.91 | 0.00 | 1.07 | 16.64 | 161.40 | -64.33 | 72.13 | 0.9091 | 52.0 | 41.0 | |
| 11.96 | 58.65 | 13.80 | 68.46 | 15.50 | 161.86 | -63.87 | 73.31 | 0.9049 | 629.8 | 34.4 | |
| 0.00 | 1.90 | 0.00 | 2.32 | 16.53 | 160.42 | -65.32 | 72.36 | 0.9157 | 59.0 | -60.4 | |
| 0.00 | 2.81 | 0.00 | 3.28 | 14.58 | 161.43 | -64.30 | 74.38 | 0.9073 | 488.0 | 294.5 | |
| 0.00 | 2.27 | 0.00 | 2.74 | 15.42 | 160.50 | -65.23 | 73.56 | 0.9144 | -158.0 | -102.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
