SDO HMI 2011-06-16 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.64 | 496.10 | 74.29 | 279.75 | -15.01 | 247.28 | 23.76 | 234.51 | 0.4795 | 100.5 | 143.5 | |
|
previous
or next observation for the same group /

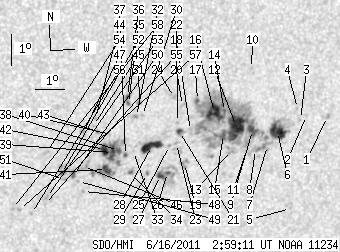

back to the solar disc SDO HMI 2011-06-16 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.38 | -14.41 | 251.82 | 28.29 | 239.97 | 0.5323 | 747.0 | 618.5 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -14.37 | 251.06 | 27.54 | 239.41 | 0.5223 | 600.0 | 595.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.50 | 250.87 | 27.34 | 239.03 | 0.5207 | 700.0 | 579.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.15 | 250.72 | 27.19 | 239.50 | 0.5163 | 841.0 | 658.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -17.33 | 250.93 | 27.41 | 234.43 | 0.5423 | 523.0 | 409.6 | |
| 17.95 | 33.82 | 10.35 | 19.51 | -14.87 | 250.10 | 26.58 | 237.71 | 0.5136 | 927.1 | 333.5 | |
| 0.00 | 5.44 | 0.00 | 3.14 | -15.31 | 249.81 | 26.29 | 236.69 | 0.5131 | 530.0 | 611.7 | |
| 0.00 | 5.62 | 0.00 | 3.23 | -15.44 | 249.41 | 25.88 | 236.09 | 0.5090 | 252.0 | 352.3 | |
| 6.89 | 251.63 | 3.94 | 142.63 | -14.83 | 249.22 | 25.70 | 236.95 | 0.5021 | 897.1 | 517.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -12.88 | 248.95 | 25.43 | 240.20 | 0.4843 | 912.0 | 747.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.47 | 249.09 | 25.57 | 235.74 | 0.5053 | 498.0 | 410.0 | |
| 29.92 | -9.00 | 17.03 | -9.00 | -14.70 | 248.65 | 25.12 | 236.62 | 0.4937 | 1031.1 | 999999 | |
| 0.00 | 6.08 | 0.00 | 3.47 | -15.46 | 248.57 | 25.04 | 235.22 | 0.4987 | 296.0 | 234.0 | |
| 1.27 | -9.00 | 0.72 | -9.00 | -14.22 | 248.17 | 24.65 | 236.99 | 0.4840 | 1012.9 | 999999 | |
| 4.99 | -9.00 | 2.83 | -9.00 | -14.95 | 248.22 | 24.70 | 235.75 | 0.4904 | 845.8 | 999999 | |
| 17.32 | -9.00 | 9.77 | -9.00 | -14.25 | 247.83 | 24.31 | 236.59 | 0.4798 | 1175.9 | 999999 | |
| 1.54 | -9.00 | 0.86 | -9.00 | -13.87 | 247.20 | 23.68 | 236.63 | 0.4687 | 1000.1 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.63 | -14.81 | 247.07 | 23.54 | 234.77 | 0.4747 | 77.0 | 11.9 | |
| 0.00 | 5.98 | 0.00 | 3.38 | -15.86 | 246.99 | 23.46 | 232.84 | 0.4825 | -603.0 | -507.7 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -14.02 | 246.70 | 23.18 | 235.81 | 0.4636 | 485.0 | 455.7 | |
| 2.54 | 5.26 | 1.42 | 2.95 | -14.84 | 246.69 | 23.17 | 234.30 | 0.4702 | -716.9 | -352.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.56 | 246.59 | 23.07 | 234.71 | 0.4665 | -552.0 | -432.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.22 | 246.63 | 23.11 | 233.56 | 0.4727 | -439.0 | -270.1 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -13.77 | 246.41 | 22.88 | 235.96 | 0.4576 | 973.0 | 715.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -15.28 | 246.40 | 22.88 | 233.19 | 0.4703 | -654.0 | -509.5 | |
| 1.63 | 26.57 | 0.92 | 14.98 | -16.14 | 246.43 | 22.91 | 231.73 | 0.4782 | -685.0 | -214.6 | |
| 3.08 | -26.00 | 1.73 | -26.00 | -16.24 | 246.21 | 22.68 | 231.30 | 0.4763 | -772.2 | 999999 | |
| 13.96 | 17.77 | 7.80 | 9.92 | -15.31 | 245.79 | 22.26 | 232.42 | 0.4630 | -717.6 | -250.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -16.17 | 245.75 | 22.23 | 230.87 | 0.4702 | -735.0 | -625.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.33 | 245.38 | 21.85 | 233.72 | 0.4492 | -637.0 | -447.2 | |
| 1.54 | 1.81 | 0.85 | 1.00 | -13.95 | 245.24 | 21.71 | 234.26 | 0.4441 | -683.1 | -727.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -14.36 | 245.18 | 21.65 | 233.42 | 0.4469 | -905.0 | -730.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.46 | 245.19 | 21.67 | 231.42 | 0.4571 | -516.0 | -430.9 | |
| 0.63 | 2.99 | 0.35 | 1.67 | -16.13 | 245.17 | 21.64 | 230.21 | 0.4629 | -729.1 | -575.0 | |
| 0.45 | 4.62 | 0.25 | 2.55 | -13.94 | 244.86 | 21.34 | 233.82 | 0.4394 | -924.0 | -832.2 | |
| 1.63 | -35.00 | 0.90 | -35.00 | -13.72 | 244.81 | 21.28 | 234.17 | 0.4368 | -893.4 | 999999 | |
| 1.36 | 1.81 | 0.76 | 1.01 | -15.59 | 244.93 | 21.41 | 230.88 | 0.4551 | -597.5 | -384.6 | |
| 2.27 | 66.83 | 1.26 | 37.03 | -15.43 | 244.68 | 21.15 | 230.84 | 0.4505 | -852.5 | -576.1 | |
| 6.80 | -38.00 | 3.77 | -38.00 | -15.49 | 244.48 | 20.96 | 230.47 | 0.4487 | -1035.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -14.92 | 244.35 | 20.83 | 231.35 | 0.4418 | -709.0 | -579.3 | |
| 5.53 | -38.00 | 3.07 | -38.00 | -16.03 | 244.34 | 20.81 | 229.33 | 0.4521 | -921.0 | 999999 | |
| 6.08 | -38.00 | 3.36 | -38.00 | -15.39 | 244.20 | 20.68 | 230.28 | 0.4444 | -1131.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -14.82 | 243.91 | 20.38 | 230.94 | 0.4354 | -835.0 | -698.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.41 | 243.80 | 20.28 | 231.57 | 0.4302 | -797.0 | -606.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.63 | 243.75 | 20.23 | 231.09 | 0.4317 | -795.0 | -671.5 | |
| 0.00 | 6.26 | 0.00 | 3.45 | -15.93 | 243.55 | 20.02 | 228.45 | 0.4418 | -332.0 | -767.3 | |
| 0.00 | 2.90 | 0.00 | 1.59 | -14.85 | 243.44 | 19.92 | 230.26 | 0.4300 | -854.0 | -667.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -16.73 | 243.63 | 20.11 | 227.18 | 0.4507 | -711.0 | -585.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -16.41 | 243.43 | 19.91 | 227.45 | 0.4452 | -703.0 | -575.0 | |
| 2.63 | 2.90 | 1.45 | 1.60 | -16.18 | 243.24 | 19.71 | 227.57 | 0.4407 | -894.6 | -825.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -16.34 | 242.92 | 19.39 | 226.85 | 0.4386 | -734.0 | -634.3 | |
| 1.63 | 6.35 | 0.90 | 3.49 | -16.15 | 242.83 | 19.31 | 227.06 | 0.4356 | -912.4 | -774.1 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -16.91 | 242.40 | 18.88 | 225.12 | 0.4387 | -811.0 | -665.1 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -15.48 | 242.26 | 18.74 | 227.43 | 0.4221 | -733.0 | -605.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.14 | 242.36 | 18.84 | 224.68 | 0.4406 | -583.0 | -519.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.42 | 241.95 | 18.43 | 223.59 | 0.4392 | -788.0 | -560.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.29 | 241.54 | 18.01 | 223.17 | 0.4333 | -857.0 | -736.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.26 | 241.30 | 17.77 | 222.86 | 0.4303 | -746.0 | -652.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
